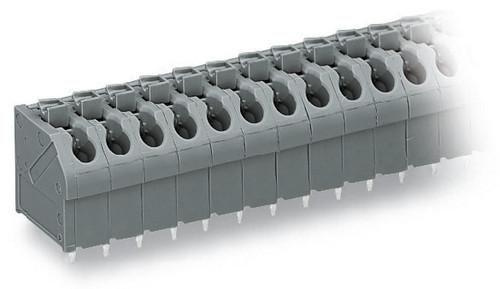

250-513 KL-Leis. SOLDERABLE 13-P.IG
| Property | Value |
| Connectable conductor cross-section, single-wire: | 0.5 to 1.5 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.5 to 1 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 0.75 to 1.5 mm² |
| Connectable conductor cross-section, stranded: | 0.5 to 1.5 mm² |
| Conductor connection type: | Spring-loaded connection |
| PCB connection type: | Solder connection |
| Number of electrical connections: | 13 |
| Number of levels: | 1 |
| Type of banding: | without |
| Type of PCB fastening: | Connection contact |
| Fastening type: | soldering |
| Rated voltage: | 320 V |
| Rated impulse voltage: | 4 kV |
| Rated current In: | 17.5 A |
| Operating temperature: | -60 to 105 °C |
| Flammability class of the insulating material according to UL94: | V0 |
| Housing color: | gray |
| Height: | 16.5 mm |
| Length of the pin: | 4 mm |
| Pitch of the connections: | 5 mm |
| Overvoltage category: | III |
| Pollution degree: | 2 |
| Material of the connection surface: | Tin |
| Material of the insulation body: | Thermoplastic |
| Angle of circuit board/conductor connection: | 45°/135° (obliquely upwards) |
Features
Rated surge voltage
4 kV
Minimal order
60 pcs
Manufacturer
HAN
250-513
GTIN
4044918303743
Connectable conductor cross-section solid
0.5 to 1.5 mm²
Connectable conductor cross-section stranded
0.5 to 1.5 mm²
Mounting type
Soldering
Rated voltage
320V
Rated current In
17.5A
Operating temperatur
-60 to 105 °C
Housing color
Gray
Height
16.5 mm
Degree of contamination
2
Overvoltage category
III
