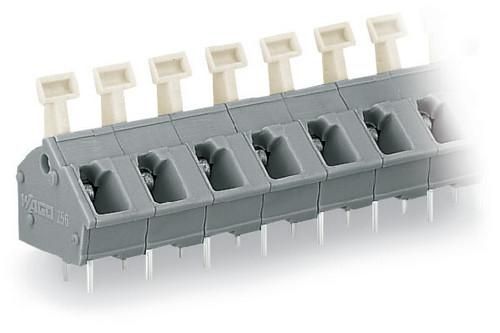

PCB terminal, push-button, 2.5 mm², pitch 7.5/7.62 mm, 6-pin, Ex-e suitable, CAGE CLAMP®, bridging option, solder pin length 5.5 mm, 2.50 mm², light gray
| Property | Value |
| Connectable conductor cross-section, single-wire: | 0.5 to 2.5 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.25 to 1.5 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 0.08 to 2.5 mm² |
| Connectable conductor cross-section, stranded: | 0.5 to 2.5 mm² |
| Conductor connection type: | Spring-loaded connection |
| PCB connection type: | Soldered connection |
| Number of electrical connections: | 6 |
| Number of levels: | 1 |
| Type of banding: | without |
| Type of PCB fastening: | Connection contact |
| Mounting type: | soldering |
| Rated voltage: | 275 V |
| Rated current In: | 16 A |
| Operating temperature: | -60 to 105 °C |
| Flammability class of the insulating material according to UL94: | V0 |
| Housing color: | gray |
| Height: | 18.2 mm |
| Length of the pin: | 5.5 mm |
| Connection pitch: | 7.5 mm |
| Connection surface material: | Tin |
| Insulating body material: | Thermoplastic |
| Angle circuit board/conductor connection: | 45°/135° (slanted upwards) |
Features
Minimal order
25 pcs
Manufacturer
HAN
256-506/332-009/999-950
GTIN
4044918764421
Connectable conductor cross-section solid
0.5 to 2.5 mm²
Connectable conductor cross-section stranded
0.5 to 2.5 mm²
Mounting type
Soldering
Rated voltage
275V
Rated current In
16A
Operating temperatur
-60 to 105 °C
Housing color
Gray
Height
18.2 mm
