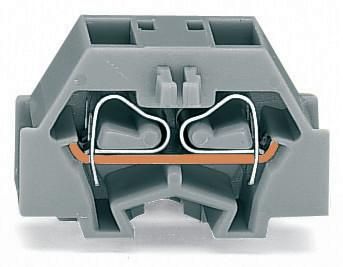

4-L.TERMINAL 1.5 QMM L-GREY WITH LOCKING FOOT
| Property | Value |
| Number of poles: | 1 |
| Rated voltage: | 400 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 18 A |
| Color: | grey |
| Operating temperature: | -30 to 85 °C |
| QS finely stranded: | 0.08 to 1.5 mm² |
| QS single-stranded: | 0.08 to 1.5 mm² |
| QS multi-stranded: | 0.08 to 1.5 mm² |
| Mounting type: | other |
| Design of electrical connection 1: | spring-loaded connection |
| Design of electrical connection 2: | spring-loaded connection |
| Number of terminal points per pole: | 4 |
| Flammability class of the insulating material according to UL94: | V0 |
| End plate required: | yes |
| Explosion-tested version Ex e: | no |
| Transparent: | no |
| Halogen-free: | yes |
| Width: | 8 mm |
| Height: | 25.1 mm |
| Depth: | 17.1 mm |
