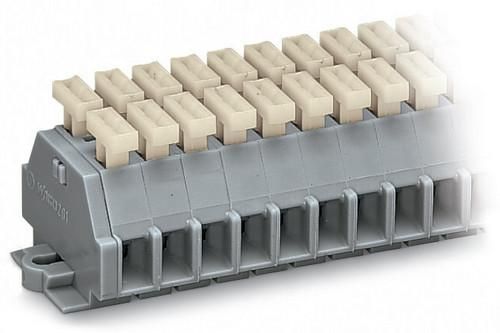

2-conductor terminal block, with push-buttons on both sides, with mounting flanges, 11-pin, for screws etc. Fastening types, fastening hole Ø 3.2 mm, 2.5 mm², CAGE CLAMP®, 2.50 mm², grey
| Property | Value |
| Number of poles: | 11 |
| Rated voltage: | 500 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 24 A |
| Color: | grey |
| Operating temperature: | -30 to 85 °C |
| Center hole spacing: | 74.1 mm |
| QS fine-stranded: | 0.08 to 2.5 mm² |
| QS single-stranded: | 0.08 to 2.5 mm² |
| QS multi-stranded: | 0.08 to 2.5 mm² |
| Mounting type: | other |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of terminal points per pole: | 2 |
| Flammability class of the insulating material according to UL94: | V0 |
| End plate required: | no |
| Explosion-tested version Ex e: | no |
| Transparent: | no |
| Halogen-free: | yes |
| Width: | 80.1 mm |
| Height: | 28.1 mm |
| Depth: | 23.3 mm |
