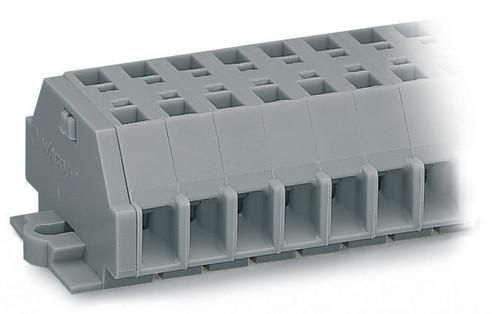

2-L.TERMINAL 2.5 QMM 11-PIN WITH LOCKING FOOT
| Property | Value |
| Number of poles: | 11 |
| Rated voltage: | 500 V |
| Insulating body material: | Thermoplastic |
| Rated current In: | 24 A |
| Color: | gray |
| Operating temperature: | -30 to 85 °C |
| QS fine-stranded: | 0.08 to 2.5 mm² |
| QS single-stranded: | 0.08 to 2.5 mm² |
| QS multi-stranded: | 0.08 to 2.5 mm² |
| Mounting type: | other |
| Design of electrical connection 1: | spring-loaded connection |
| Design of electrical connection 2: | spring-loaded connection |
| Number of terminal points per pole: | 2 |
| Flammability class of the insulating material according to UL94: | V0 |
| End plate required: | no |
| Explosion-tested version Ex e: | no |
| Transparent: | no |
| Halogen-free: | yes |
| Width: | 69 mm |
| Height: | 28.1 mm |
| Depth: | 18.1 mm |
