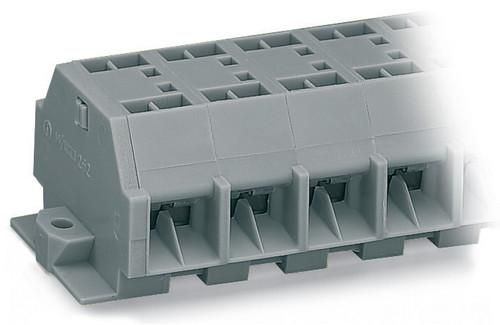

262-258 TERMINALLow. 4 QMM 8-P. 4-CONDUCTOR
| Property | Value |
| Number of poles: | 8< /td> |
| Rated voltage: | 630 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 24 A |
| Colour: | grey |
| Operating temperature: | 105 °C |
| Center hole spacing: | 7 mm |
| QS fine-stranded: | 0.08 to 4 mm² |
| QS single-stranded: | 0.08 to 4 mm² | < /tr>
| QS stranded: | 0.08 to 4 mm² |
| Mounting type: | other |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of terminals per pole: | 4 |
| Flammability class of the insulating material according to UL94: | V0 |
| End plate required: | no |
| Explosion-tested version Ex e: | no |
| Transparent: | no |
| Halogen-free: | yes |
| Width: | 99 mm |
| Height: | 33.5 mm |
| Depth: | 23.1 mm |
