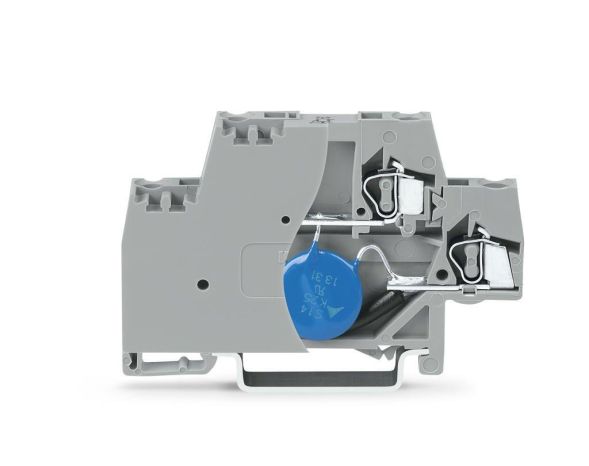

Component terminal, double-deck, with end plate, with varistor, for mounting rail 35 x 15 and 35 x 7, 5, 2.5 mm², CAGE CLAMP®, 2.50 mm², grey
| Property | Value |
| Connectable conductor cross-section, single-wire: | 0.08 to 2.5 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 0.08 to 2.5 mm² |
| Connectable conductor cross-section, stranded: | 0.08 to 2.5 mm² |
| Rated current In: | 20 A |
| Operating temperature: | 105 °C |
| Rated voltage: | 24 V |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of levels: | 1 |
| Number of terminal points per level: | 2 |
| Levels bridged internally: | no |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL 94: | V0 |
| End plate required: | yes |
| Color: | gray |
| Component type: | Varistor |
| Explosion-tested version 'Ex e': | no |
| Material of the insulating body: | Thermoplastic |
Features
HAB
With varistor and end plate
Minimal order
50 pcs
Manufacturer
HAN
280-504/281-586
GTIN
4045454921972
Connectable conductor cross-section solid
0.08 to 2.5 mm²
Connectable conductor cross-section stranded
0.08 to 2.5 mm²
Rated voltage
24V
Rated current In
20A
Operating temperatur
105°C
Flammability class of the insulating material according to UL 94
V0
Color
Mounting type
DIN rail TH35
