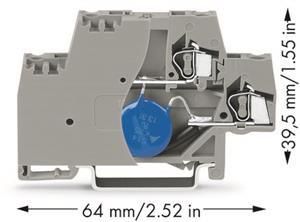

DSK M. VARISTOR S14K35
| Property | Value |
| Connectable conductor cross-section, single-wire: | 0.08 to 2.5 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 0.08 to 2.5 mm² |
| Connectable conductor cross-section, stranded: | 0.08 to 2.5 mm² |
| Rated current In: | 20 A |
| Operating temperature: | 105 °C |
| Rated voltage: | 24 V |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of levels: | 1 |
| Number of terminal points per level: | 2 |
| Levels internally bridged: | no |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL94: | V0 |
| End plate required: | yes |
| Color: | gray |
| Component type: | Varistor |
| Explosion-tested version Ex e: | no |
| Material of the insulating body: | Thermoplastic |
