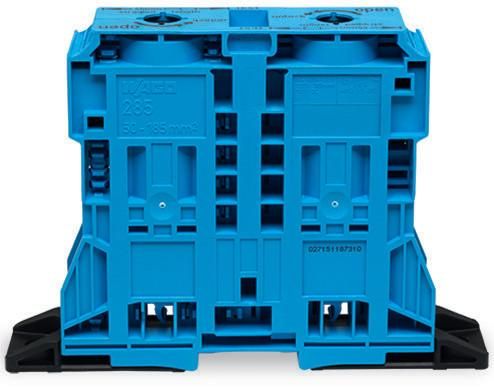

2-conductor feed-through terminal
| Property | Value |
| QS single-wire: | 50 to 185 mm² |
| QS fine-wire: | 50 to 185 mm² |
| QS multi-wire: | 50 to 185 mm² |
| Color: | blue |
| QS wire end ferrule: | 50 to 185 mm² |
| Rated voltage: | 1000 V |
| Levels: | 1 |
| Terminal points per level: | 2 |
| Rated current In: | 353 A |
| Operating temperature: | 105 °C |
| Connection: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL94: | V0 |
| End plate required: | no |
| Levels bridged internally: | no |
| Material of the insulating body: | Thermoplastic |
| Explosion-tested version Ex e: | no |
| Width: | 32 mm |
| Height: | 170 mm |
| Depth: | 123 mm |
