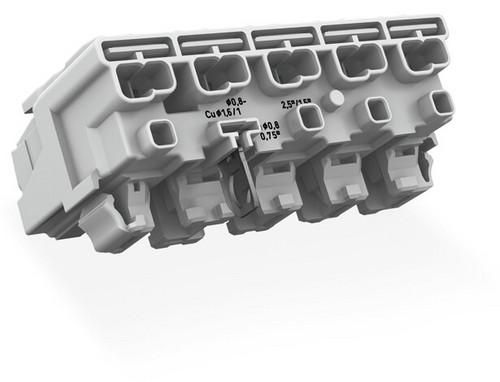

294-8115 LAK17 5P LIN dPE L3 L2 L1 PE N
| Property | Value |
| Number of poles: | 5 |
| Rated voltage: | 500 V |
| Material of the insulating body: | other |
| Rated current In: | 24 A |
| Color: | white |
| Operating temperature: | 125 °C |
| QS finely stranded: | 0.5 to 2.5 mm² |
| QS single-stranded: | 0.5 to 2.5 mm² |
| QS multi-stranded: | 0.5 to 2.5 mm² |
| QS wire end ferrule: | 0.5 to 1.5 mm² |
| Mounting type: | other |
| Design of electrical connection 1: | spring-loaded connection |
| Design of electrical connection 2: | plug-in terminal connection |
| Number of terminal points per pole: | 2 |
| Flammability class of the insulating material according to UL94: | V0 |
| End plate required: | no |
| Explosion-tested version Ex e: | no |
| Transparent: | no |
| Width: | 30 mm |
| Height: | 22.4 mm |
| Depth: | 27.3 mm |
