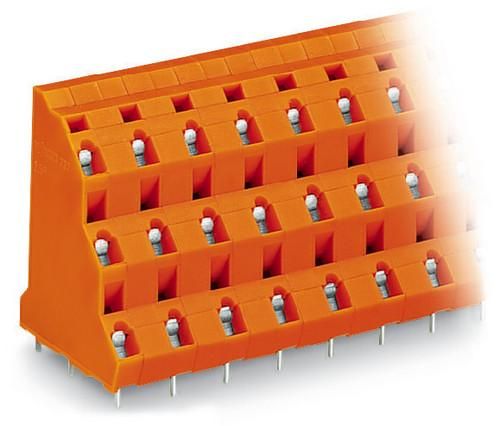

737-808 3-ST-Cl. FLUCHT.LöTST.8-P.10,16M
| Property | Value |
| Connectable conductor cross-section, single-wire: | 0.08 to 2.5 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.25 to 2.5 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 0.08 to 2.5 mm² |
| Connectable conductor cross-section, multi-wire: | 0.08 to 2.5 mm² |
| Conductor connection type: | Spring-loaded connection |
| PCB connection type: | Solder connection |
| Number of electrical connections: | 24 |
| Number of levels: | 3 |
| Type of banding: | without |
| Type of PCB fastening: | Connection contact |
| Fastening type: | soldering |
| Rated voltage: | 1000 V |
| Rated impulse voltage: | 8 kV |
| Rated current In: | 21 A |
| Operating temperature: | -60 to 105 °C |
| Flammability class of the insulating material according to UL94: | V0 |
| Housing color: | orange |
| Height: | 40 mm |
| Length of the pin: | 4 mm |
| Pitch of the connections: | 10.16 mm |
| Overvoltage category: | III |
| Pollution degree: | 2 |
| Material of the connection surface: | Tin |
| Material of the insulation body: | Thermoplastic |
| Angle circuit board/conductor connection: | 45°/135° (obliquely upwards) |
Features
Rated surge voltage
8 kV
Minimal order
12 pcs
Manufacturer
HAN
737-808
GTIN
4045454018825
Connectable conductor cross-section solid
0.08 to 2.5 mm²
Connectable conductor cross-section stranded
0.08 to 2.5 mm²
Mounting type
Soldering
Rated voltage
1000V
Rated current In
21 A
Operating temperatur
-60 to 105 °C
Housing color
Orange
Height
40 mm
Degree of contamination
2
Overvoltage category
III
