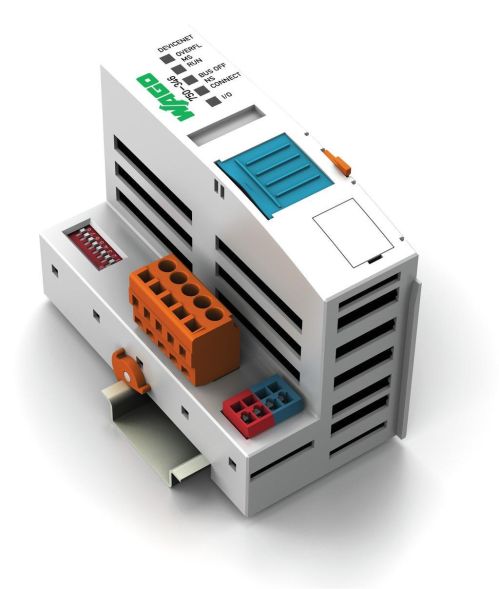

Fieldbus coupler DeviceNet ECO light gray
| Property | Value |
| Design of the electrical connection: | Spring-loaded connection |
| Input voltage for DC: | 24 V |
| Front installation possible: | no |
| Wireless standard Bluetooth: | no |
| Wireless standard WLAN 802.11: | no |
| Suitable for safety functions: | no |
| IO-Link Master: | no |
| Max. Input current at DC: | 0.26 A |
| Rack mounting possible: | no |
| Wall/direct mounting possible: | no |
| Field bus connection via separate bus coupler possible: | no |
| With bus coupler for modular station construction: | yes |
| Number of slots: | 1 |
| With pluggable modules, digital I/O: | yes |
| With pluggable modules, analog I/O: | yes |
| With pluggable modules, communication modules: | yes |
| With pluggable modules, function and technology modules: | yes |
| With pluggable modules, central modules: | yes |
| With pluggable modules, other: | yes |
| With integrated power supply: | no |
| Type of input voltage: | DC |
| Protection class (IP): | IP20 |
| Mounting rail mounting possible: | yes |
| System component: | yes |
| Number of other HW interfaces: | 1 |
| With optical interface: | no |
| With electrical isolation: | yes |
| Associated equipment (Ex ia): | no |
| Associated equipment (Ex ib): | no |
| Explosion protection category for Gas: | ATEX gas explosion protection, cat. 3G |
| Explosion protection category for dust: | ATEX dust explosion protection, cat. 3D |
| Width: | 49.5 mm |
| Height: | 96.8 mm |
| Depth: | 71.9 mm |
| Supports protocol for EtherNet/IP: | no |
| Supports protocol for SERCOS: | no |
| Supports protocol for other bus systems: | no |
| Supports protocol for PROFINET CBA: | no |
| Supports protocol for TCP/IP: | no |
| Supports protocol for KNX: | no |
| Supports protocol for MODBUS: | no |
| Supports protocol for PROFIsafe: | no |
| Supports protocol for AS-Interface Safety at Work: | no |
| Wireless standard GSM: | no |
| Supports protocol for INTERBUS: | no |
| Supports protocol for LON: | no |
| Supports protocol for DeviceNet Safety: | no |
| Supports protocol for Foundation Fieldbus: | no |
| Supports protocol for SUCONET: | no |
| Supports protocol for ASI: | no |
| Supports protocol for Data highway: | no |
| Supports protocol for SafetyBUS p: | no |
| Supports protocol for PROFIBUS: | no |
| Supports protocol for PROFINET IO: | no |
| Wireless standard GPRS: | no |
| Supports protocol for INTERBUS-Safety: | no |
| Supports protocol for CAN: | no |
| Supports protocol for DeviceNet: | yes |
| Radio standard UMTS: | no |
Features
Supports protocol for KNX
No
With optical interface
No
HAB
DeviceNet ECO
Manufacturer
HAN
750-346
GTIN
4045454406998
Design of the electrical connection
Spring-loaded connection
Width
49.5 mm
Explosion protection category for gas
ATEX gas explosion protection, cat. 3G
Explosion protection category for dust
ATEX dust explosion protection, cat. 3D
Suitable for security functions
No
Height
96.8 mm
IP protection)
IP20
Depth
71.9 mm
Mounting rail possible
Yes
Supports protocol for AS-Interface Safety at Work
No
Supports protocol for ASI
No
Supports protocol for CAN
No
Supports data highway protocol
No
Supports protocol for DeviceNet
Yes
Supports protocol for DeviceNet Safety
No
Supports protocol for EtherNet/IP
No
Supports protocol for Foundation Fieldbus
No
Supports protocol for INTERBUS
No
Supports protocol for INTERBUS-Safety
No
Supports protocol for LON
No
Supports protocol for Modbus
No
Supports protocol for PROFIBUS
No
Supports protocol for PROFINET CBA
No
Supports protocol for PROFINET IO
No
Supports protocol for PROFIsafe
No
Supports protocol for SERCOS
No
Supports protocol for SUCONET
No
Supports protocol for SafetyBUS p
No
Supports protocol for TCP/IP
No
Supports protocol for other bus systems
No
