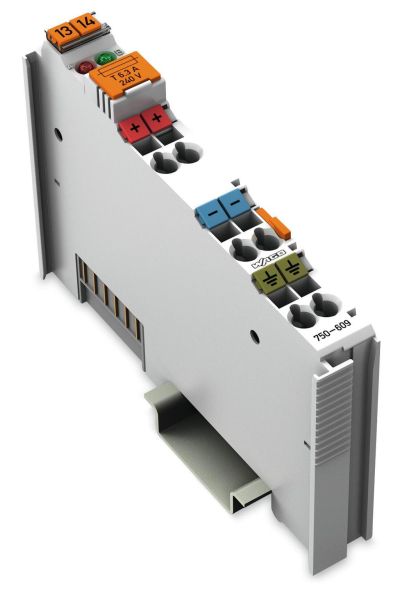

Potential feed AC 230 V fuse holder light gray
| Property | Value |
| Height: | 100 mm |
| Width: | 12 mm |
| Depth: | 69.8 mm |
| Type of supply voltage: | AC |
| Supply voltage for DC: | 230 V |
| Supports protocol for AS-Interface Safety at Work: | no |
| Supports protocol for Foundation Fieldbus: | no |
| Supports protocol for INTERBUS-Safety: | no |
| Wireless standard WLAN 802.11: | no |
| Supports protocol for SUCONET: | no |
| Rack mounting possible: | no |
| Supports protocol for PROFIsafe: | no |
| Supports protocol for SafetyBUS p: | no |
| Supports protocol for DeviceNet Safety: | no |
| Supports protocol for CAN: | no |
| Wireless standard Bluetooth: | no |
| Supply voltage at AC 50 Hz: | 230 V |
| Supports protocol for KNX: | no |
| Supports protocol for EtherNet/IP: | no |
| Supports protocol for INTERBUS: | no |
| Supports protocol for TCP/IP: | no |
| Supports protocol for MODBUS: | no |
| Supply voltage at AC 60 Hz: | 230 V |
| Supports protocol for DeviceNet: | no |
| Supports protocol for LON: | no |
| Distance module: | no |
| Wall/direct mounting possible: | no |
| Supports protocol for Data highway: | no |
| Supports protocol for PROFIBUS: | no |
| Suitable for safety functions: | no |
| Supports protocol for PROFINET CBA: | no |
| Supports protocol for SERCOS: | no |
| Design of the electrical connection: | Spring-loaded connection |
| Supports protocol for other bus systems: | no |
| Front installation possible: | no |
| Supports protocol for PROFINET IO: | no |
| Supports protocol for ASI: | no |
| Field bus connection via separate bus coupler possible: | yes |
| With feed module: | yes |
| Suitable as segment module: | yes |
| Bus diagnostics possible: | no |
| With electrical isolation: | no |
| Protection class (IP): | IP20 |
| Mounting rail mounting possible: | yes |
| System component: | yes |
| With optical interface: | no |
| Associated equipment (Ex ia): | no |
| Associated equipment (Ex ib): | no |
| Explosion protection category for gas: | ATEX gas explosion protection, cat. 3G |
| Explosion protection category for Dust: | ATEX dust explosion protection, cat. 3D |
| Wireless standard GSM: | no |
| Wireless standard GPRS: | no |
| Wireless standard UMTS: | no |
Features
Type of voltage of the supply voltage
AC
Supports protocol for KNX
No
With optical interface
No
HAB
750-609 with fuse holder 230VAC
Manufacturer
HAN
750-609
GTIN
4045454509699
Design of the electrical connection
Spring-loaded connection
Width
12 mm
Explosion protection category for gas
ATEX gas explosion protection, cat. 3G
Explosion protection category for dust
ATEX dust explosion protection, cat. 3D
Suitable for security functions
No
Height
100 mm
IP protection)
IP20
Depth
69.8 mm
Mounting rail possible
Yes
Supports protocol for AS-Interface Safety at Work
No
Supports protocol for ASI
No
Supports protocol for CAN
No
Supports data highway protocol
No
Supports protocol for DeviceNet
No
Supports protocol for DeviceNet Safety
No
Supports protocol for EtherNet/IP
No
Supports protocol for Foundation Fieldbus
No
Supports protocol for INTERBUS
No
Supports protocol for INTERBUS-Safety
No
Supports protocol for LON
No
Supports protocol for Modbus
No
Supports protocol for PROFIBUS
No
Supports protocol for PROFINET CBA
No
Supports protocol for PROFINET IO
No
Supports protocol for PROFIsafe
No
Supports protocol for SERCOS
No
Supports protocol for SUCONET
No
Supports protocol for SafetyBUS p
No
Supports protocol for TCP/IP
No
Supports protocol for other bus systems
No
