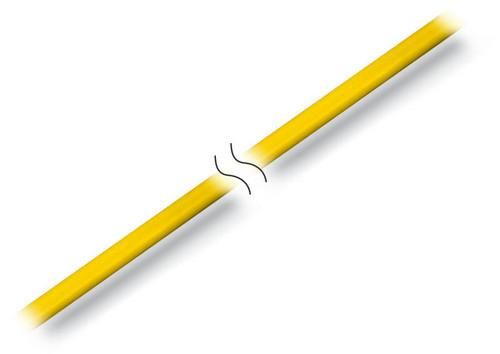

System bus cable, 5-pin, length 50 m
| Property | Value |
| Number of cores: | 4 |
| Outer Ø approx.: | 6 mm |
| Conductor diameter: | 1 mm |
| Stranding element: | no |
| Core marking: | Color |
| Sheath color: | yellow |
| Conductor class: | Class 5 = fine-wire |
| Shield over stranding element: | Foil + braid |
| Category: | 5 |
| Shield over stranding: | Foil + braid |
| Sheath material: | Polyurethane (PUR) |
| Perm. Cable external temperature after installation without vibration: | -25 to 60 °C |
| Conductor surface: | bare |
| Specification of conductor insulation: | other |
| UV-resistant: | no |
| Conductor material: | copper |
| AWG size: | 26 |
| Conductor identification according to HD 308 S2: | no |
| Permissible type of installation in the ground: | other |
| Reinforcement/armoring: | braid |
| Reinforcement material: | other |
| Cable geometry: | round |
| Certified for marine applications: | no |
| Separation class according to EN 50174-2: | C |
| Suitable as a telephone cable: | no |
| Suitable as a computer data cable: | no |
| Suitable as a signal cable: | yes |
| Weight: | 9,999 kg/km |
| Compatible with Grade2TV according to XP-C 90-483: | no |
| Compatible with Grade3TV according to XP-C 90-483: | no |
Features
Sheath material
Polyurethane (PUR)
Category
5
Conductor material
Copper
Manufacturer
HAN
756-1300/000-500
GTIN
4045454779474
AWG Size
26
Wire number
4
Weight
9,999 kg/km
Leader Class
Kl.5 = fine-stranded
Coat color
Yellow
UV-resistant
No
