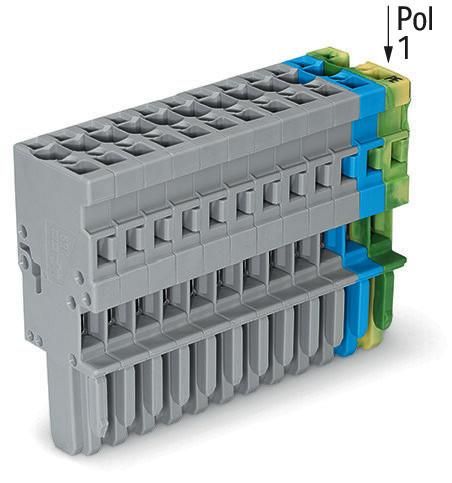

1-conductor female connector, CAGE CLAMP®, 4 mm², pitch 5 mm, 12-pin, coding nose, 4.00 mm², green-yellow/blue/gray
| Property | Value |
| Number of poles: | 12 |
| Rated voltage: | 500 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 32 A |
| Color: | multicolored |
| Operating temperature: | 105 °C |
| QS fine-stranded: | 0.08 to 4 mm² |
| QS single-stranded: | 0.08 to 4 mm² |
| QS multi-stranded: | 0.08 to 4 mm² |
| QS wire end ferrule: | 0.25 to 2.5 mm² |
| Mounting type: | other |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of terminal points per pole: | 1 |
| Flammability class of the insulating material according to UL94: | V0 |
| End plate required: | no |
| Explosion-tested version Ex e: | no |
| Transparent: | no |
| Halogen-free: | yes |
| Width: | 60 mm |
| Height: | 18.3 mm |
| Depth: | 45.2 mm |
Features
Minimal order
20 pcs
Manufacturer
HAN
769-112/000-038
GTIN
4050821653547
Rated voltage
500V
Rated current In
32 A
Operating temperatur
105°C
Width
60 mm
Color
Halogen free
Yes
Height
18.3 mm
Mounting type
Other
Number of poles
12
Depth
45.2 mm
Transparent
No
