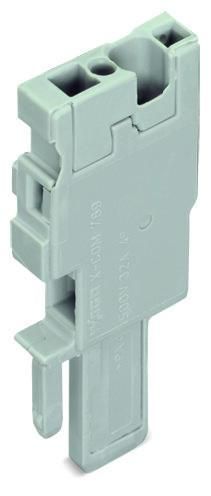

1-conductor female connector start module, CAGE CLAMP®, 4 mm², pitch 5 mm, 1-pole, coding nose, with integrated end plate, 4.00 mm², gray
| Property | Value |
| Number of poles: | 1 |
| Color: | gray |
| Rated voltage: | 500 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 32 A |
| Operating temperature: | 105 °C |
| Connectable conductor cross-section, single-wire: | 0.08 to 4 mm² |
| Connectable conductor cross-section, multi-wire: | 0.08 to 4 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.25 to 2.5 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 0.08 to 4 mm² |
| Mounting type: | other |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of terminal points per pole: | 1 |
| Flammability class of the insulating material according to UL 94: | V0 |
| End plate required: | no |
| Explosion-tested version 'Ex e': | no |
| Transparent: | no |
Features
HAB
769-501 codable grey
Minimal order
250 pcs
Manufacturer
HAN
769-501
GTIN
4017332331418
Connectable conductor cross-section solid
0.08 to 4 mm²
Connectable conductor cross-section stranded
0.08 to 4 mm²
Rated voltage
500V
Rated current In
32 A
Operating temperatur
105°C
Flammability class of the insulating material according to UL 94
V0
Color
Mounting type
Other
Number of poles
1
Transparent
No
