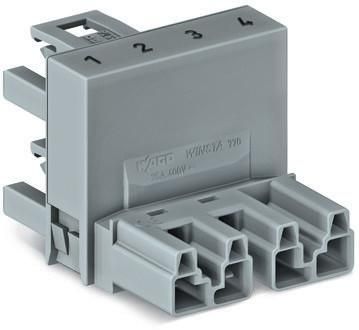

h-DISTRIBUTOR 4-PIN CODE. B GRAY 2VK
| Property | Value |
| Contact material: | CuSn |
| Inputs: | 4 |
| Outputs: | 8 |
| Fire load: | 0.15111 kWh |
| Protection class (IP): | IP20 |
| Length: | 51 mm |
| Height: | 36.7 mm |
| Width: | 40 mm |
| Rated impulse voltage: | 6 kV |
| Voltage resistance: | 1 mOhm |
| Rated current: | 25 A |
| Number of poles: | 4 |
| Color of coding/contact insert: | gray |
| Type of distributor: | Distribution block |
| Rated voltage: | 400 V |
| Material of the housing: | Polyamide (PA) |
| Halogen-free: | yes |
| Surface treatment of contacts: | tinned |
| Mechanical coding: | yes |
| Color of the separate adapter piece: | without adapter piece |
| Pollution level: | 3 |
| Type of integrated circuit: | without |
| Type of locking: | integrated in the connector |
| Mounting option: | no |
| Rated current for the luminaire: | 25 A |
| Max. continuous temperature resistance of contact part: | 85 °C |
| Max. continuous temperature resistance of strain relief: | 105 °C |
Features
Rated surge voltage
6 kV
Minimal order
50 pcs
Manufacturer
HAN
770-1681
GTIN
4050821687740
Rated voltage
400V
Rated current
25A
Width
40 mm
Halogen free
Yes
Height
36.7 mm
Length
51 mm
Number of poles
4
IP protection)
IP20
Degree of contamination
3
Housing material
Polyamide (PA)
