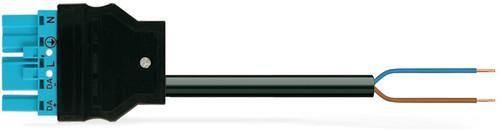

prefabricated connection cable, B2ca, plug/open end, 5-pin, code I, H05Z1Z1-F 2 x 1.50 mm², 7 m, 1.50 mm², blue
| Property | Value |
| Length: | 7000 mm |
| Version side 1: | Plug |
| Version side 2: | free cable end |
| Sheath color: | black |
| Rated voltage: | 250 V |
| Stripping length: | 9 mm |
| Nominal conductor cross-section: | 1.5 mm² |
| Rated impulse voltage: | 4 kV |
| Voltage resistance: | 1 mOhm |
| Housing color: | black |
| Protection class (IP): | IP20 |
| Color of coding/contact insert: | blue |
| Type of pre-assembled cable: | Connection cable |
| Degree of contamination: | 3 |
| Conductor end treatment: | ultrasonic-compressed wire ends |
| Mechanical coding: | yes |
| Cable permanently temperature-resistant up to: | 70 °C |
| Insulating part permanently temperature-resistant up to: | 105 °C |
| Surface treatment of contacts: | tinned |
| Halogen-free: | yes |
| Fire load: | 0.18778 kWh |
| Stripping length: | 48 mm |
| Number of poles: | 5 |
| Type of locking: | separate |
| Cable diameter: | 6.8 to 8.6 mm |
| Cable type: | H05Z1Z1-F |
| Max. Operating temperature at conductor: | 75 °C |
| Fire behaviour according to EN 13501-6: Class: | B2ca |
Features
Nominal conductor cross-section
1.5 mm²
Cable diameter
6.8 to 8.6mm
Cable type
H05Z1Z1-F
Rated surge voltage
4 kV
Manufacturer
HAN
771-5001/211-000
GTIN
4055143807593
Rated voltage
250V
Housing color
Black
Halogen free
Yes
Length
7000 mm
Coat color
Black
Number of poles
5
IP protection)
IP20
Degree of contamination
3
