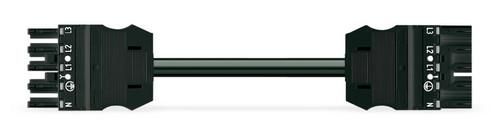

prefabricated connecting cable, B2ca, socket plug, 5-pin, code A, H05Z1Z1-F 5G 1.5 mm², 4 m, 1.50 mm², black
| Property | Value |
| Length: | 4000 mm |
| Version side 1: | Socket |
| Version side 2: | Plug |
| Sheath color: | black |
| Rated voltage: | 400 V |
| Nominal conductor cross-section: | 1.5 mm² |
| Rated impulse voltage: | 6 kV |
| Voltage resistance: | 1 mOhm |
| Housing color: | black |
| Protection class (IP): | IP20 |
| Rated current: | 16 A |
| Color of coding/contact insert: | black |
| Type of pre-assembled cable: | Connection cable |
| Degree of pollution: | 3 |
| Mechanical coding: | yes |
| Cable permanently temperature-resistant up to: | 70 °C |
| Insulating part permanently temperature-resistant up to: | 105 °C |
| Surface treatment of contacts: | tinned |
| Halogen-free: | yes |
| Fire load: | 0.30528 kWh |
| Number of poles: | 5 |
| Locking type: | separate |
| Cable diameter: | 9.3 to 11.6 mm |
| Cable type: | H05Z1Z1-F |
| Max. operating temperature on conductor: | 75 °C |
| Fire behavior according to EN 13501-6: Class: | B2ca |
Features
Nominal conductor cross-section
1.5 mm²
Cable diameter
9.3 to 11.6mm
Cable type
H05Z1Z1-F
Rated surge voltage
6 kV
Manufacturer
HAN
771-9295/016-401
GTIN
4055143660501
Rated voltage
400V
Rated current
16A
Housing color
Black
Halogen free
Yes
Length
4000 mm
Coat color
Black
Number of poles
5
IP protection)
IP20
Degree of contamination
3
