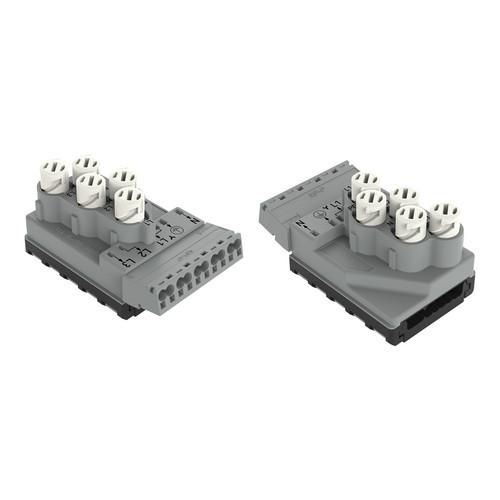

Feed-in module, 5 x 2.5 mm² + 2 x 1.5 mm², 5-pin, code B, with strain relief housing, 4.00 mm², gray
| Property | Value |
| Connection type round cable: | Spring-loaded connection |
| Type of integrated circuit: | without |
| Design: | Feed-in |
| Rated voltage: | 400 V |
| Rated current: | 25 A |
| Fire load: | 0.61694 kWh |
| Width: | 50 mm |
| Color of coding/contact insert: | gray |
| Housing color: | gray |
| Halogen-free: | yes |
| Height: | 46.5 mm |
| Contact material: | other |
| Length: | 82.5 mm |
| Mechanical Coding: | yes |
| Number of poles: | 5 |
| Protection class (IP): | IP20 |
| Housing material: | Polyamide (PA) |
| Connection cross-section (single-wire): | 0.5 to 4 mm² |
| Connection cross-section (fine-wire): | 0.5 to 4 mm² |
| Locking type: | without |
| Cable diameter: | 9 to 13 mm |
| Max. continuous temperature resistance of contact part: | 85 °C |
| Max. continuous temperature resistance of strain relief: | 105 °C |
| Transparent: | no |
Features
Cable diameter
9 to 13mm
Minimal order
10 pcs
Manufacturer
HAN
772-264/060-000
GTIN
4050821585770
Version
Feed
Rated voltage
400V
Rated current
25A
Width
50 mm
Housing color
Gray
Halogen free
Yes
Height
46.5 mm
Length
82.5 mm
Number of poles
5
IP protection)
IP20
Transparent
No
Housing material
Polyamide (PA)
