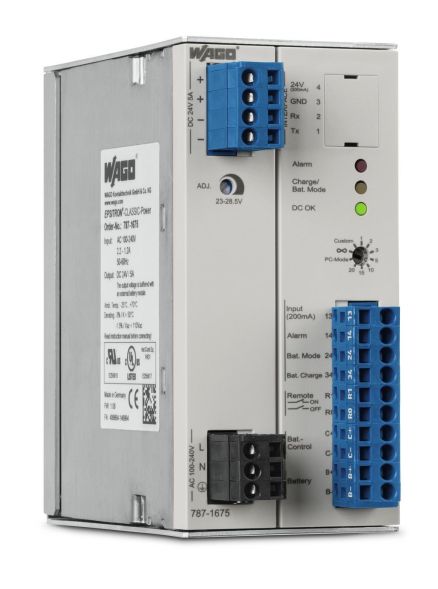

Primary switch-mode power supply with integrated charging and control unit, Classic, 1-phase, output voltage DC 24 V, output current 5 A, communication-capable, 10.00 mm²
| Property | Value |
| 2nd output voltage: | 18.5 to 27.5 V |
| 1st output voltage: | 23 to 28.5 V |
| Type of supply voltage: | AC |
| Max. Output current 1: | 5 A |
| Output voltage adjustable: | yes |
| Rated supply voltage at AC 50 Hz: | 85 to 264 V |
| Rated supply voltage at AC 60 Hz: | 85 to 264 V |
| Short-circuit proof: | yes |
| Stabilized: | yes |
| Suitable for safety functions: | no |
| Direct mounting possible: | no |
| Design of the electrical connection: | Spring-loaded connection |
| Output voltage regulated: | yes |
| Suitable for series installation: | no |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Protection class (IP): | IP20 |
| Width: | 60 mm |
| Height: | 127 mm |
| Depth: | 135.5 mm |
| Nominal output voltage 1: | 24 V |
| Nominal output current 1: | 5 A |
| Width in pitch units: | 4 |
Features
Type of voltage of the supply voltage
AC
Short circuit proof
Yes
HAB
787-1675 with UPS 230/24V 5A
Manufacturer
HAN
787-1675
GTIN
4050821502616
Design of the electrical connection
Spring-loaded connection
Width
60 mm
Width in pitch units
4
Suitable for series installation
No
Suitable for security functions
No
Height
127 mm
IP protection)
IP20
Depth
135.5 mm
Mounting rail possible
Yes
