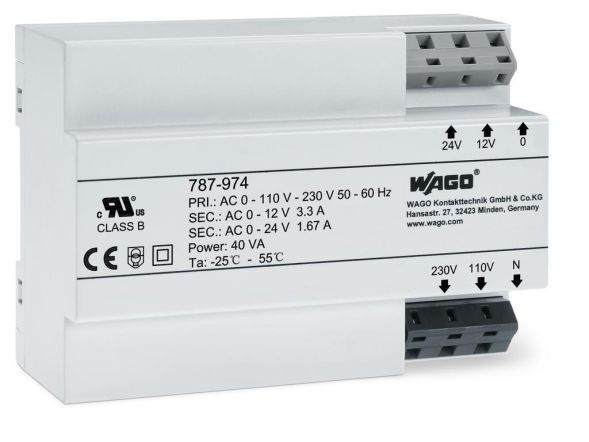

Transformer power supply Input voltage AC 230 V Output voltage AC 12- 24 V Output power 40 VA
| Property | Value |
| Design of the electrical connection: | Spring-loaded connection |
| Output voltage adjustable: | no |
| Rated supply voltage at AC 50 Hz: | 0 to 230 V |
| Rated supply voltage at AC 60 Hz: | 0 to 230 V |
| Direct mounting possible: | no |
| Suitable for safety functions: | no |
| Short-circuit proof: | yes |
| Max. output current 1: | 3.3 A |
| Max. Output current 2: | 1.67 A |
| Performance level according to EN ISO 13849-1: | without |
| Protection class (IP): | IP20 |
| Type of supply voltage: | AC |
| Stabilized: | no |
| Output voltage regulated: | no |
| Suitable for series installation: | no |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Width: | 126 mm |
| Height: | 54 mm |
| Depth: | 90 mm |
Features
Type of voltage of the supply voltage
AC
Short circuit proof
Yes
HAB
40VA
Manufacturer
HAN
787-974
GTIN
4055143487382
Design of the electrical connection
Spring-loaded connection
Width
126 mm
Suitable for series installation
No
Suitable for security functions
No
Height
54 mm
Performance Level according to EN ISO 13849-1
Without
IP protection)
IP20
Depth
90 mm
Mounting rail possible
Yes
