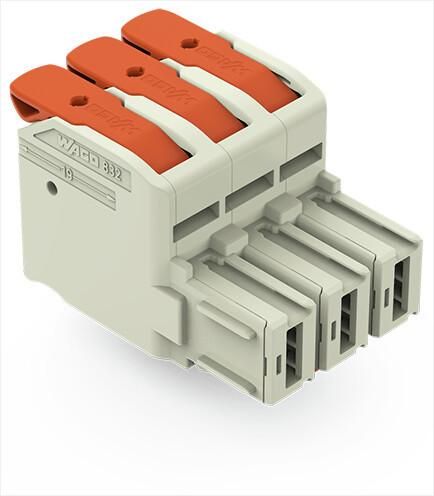

1-conductor female connector, lever, Push-in CAGE CLAMP®, 16 mm², pitch 10.16 mm, 3-pole, 100% protected against mismating, central locking latch, silver-plated contacts, 16.00 mm², light grey
| Property | Value |
| Number of poles: | 3 |
| Color: | grey |
| Rated voltage: | 1000 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 76 A |
| Operating temperature: | -60 to 120 °C |
| Connectable conductor cross-section, single-wire: | 0.75 to 16 mm² |
| Connectable conductor cross-section, stranded: | 0.75 to 25 mm² |
| Connectable conductor cross-section, fine-stranded with wire end ferrule: | 0.75 to 16 mm² |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 0.75 to 25 mm² |
| Design of electrical connection 1: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Number of terminal points per pole: | 1 |
| Flammability class of the insulating material according to UL 94: | V0 |
| End plate required: | no |
| Explosion-tested version 'Ex e': | no |
| Transparent: | no |
Features
HAB
100% mismating protected light grey
Minimal order
15 pcs
Manufacturer
HAN
832-1103/323-000
GTIN
4055143937429
Connectable conductor cross-section solid
0.75 to 16 mm²
Connectable conductor cross-section stranded
0.75 to 25 mm²
Rated voltage
1000V
Rated current In
76 A
Operating temperatur
-60 to 120 °C
Flammability class of the insulating material according to UL 94
V0
Color
Number of poles
3
Transparent
No
