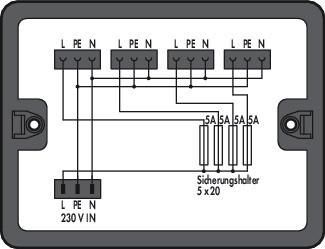

Distribution box, line and device protection, 1 input, 4 outputs, code A, MIDI, black
| Property | Value |
| Contact material: | other |
| Inputs: | 1 |
| Outputs: | 4 |
| Fire load: | 8.57139 kWh |
| Protection class (IP): | IP20 |
| Length: | 190 mm |
| Height: | 30 mm |
| Width: | 145 mm |
| Rated impulse voltage: | 4 kV |
| Contact resistance: | 1 mOhm |
| Rated current: | 5 A |
| Number of poles: | 3 |
| Color of coding/contact insert: | black |
| Type of distributor: | Distribution block |
| Rated voltage: | 250 V |
| Housing material: | Polyamide (PA) |
| Halogen-free: | yes |
| Surface treatment of contacts: | tinned |
| Mechanical coding: | yes |
| Color of the separate adapter piece: | without adapter piece |
| Pollution level: | 3 |
| Type of integrated circuit: | without |
| Type of Locking: | integrated in the connector |
| Mounting option: | via separate adapter |
| Rated current to the light: | 5 A |
| Max. continuous temperature resistance of contact part: | 85 °C |
| Max. continuous temperature resistance of strain relief: | 105 °C |
Features
Rated surge voltage
4 kV
Manufacturer
HAN
899-631/315-000
GTIN
4055143308366
Rated voltage
250V
Rated current
5A
Width
145 mm
Halogen free
Yes
Height
30 mm
Length
190 mm
Number of poles
3
IP protection)
IP20
Degree of contamination
3
Housing material
Polyamide (PA)
