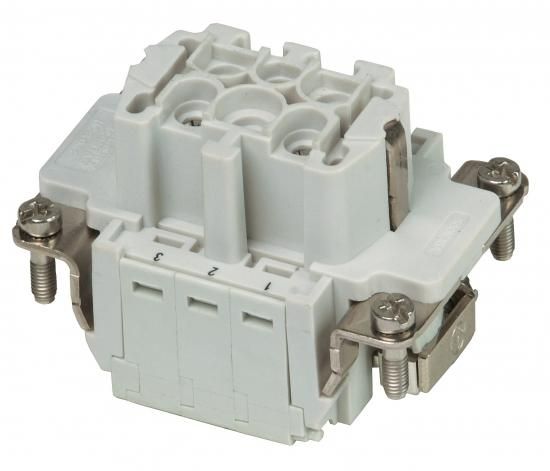

WALTHER socket insert, series B6, with push-in connection, connection cross-section 0.5-2.5qmm (20-14AWG)
| Property | Value |
| Number of poles: | 6 |
| Rated current In: | 16 A |
| Rated impulse voltage: | 6 kV |
| With protective conductor: | yes |
| Connectable conductor cross-section, stranded: | 2.5 mm² |
| Material of Connector insert: | Thermoplastic |
| Rated voltage: | 500 V |
| Overvoltage category: | III |
| Contact design: | Socket |
| Pollution level: | 3 |
| Material of the contact: | Other copper alloys |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 2.5 mm² |
| Contact insert without contacts: | no |
| Material of the contact coating: | Silver |
| Design of the electrical connection: | Plug-in terminal connection |
| With wire protection: | no |
| Flammability class of the insulating material according to UL 94: | V0 |
| Material of the contact insert: | other |
| Number of power contacts: | 6 |
| Operating temperature: | -40 to 125 °C |
| Min. number of mating cycles: | 500 |
| Width: | 50 mm |
| Height: | 35.5 mm |
| Depth: | 34 mm |
Features
Rated surge voltage
6 kV
HAB
71010604 B6
Manufacturer
HAN
71010604
GTIN
4015609603138
Connectable conductor cross-section stranded
2.5 mm²
Design of the electrical connection
Plug-in terminal connection
Rated voltage
500V
Rated current In
16A
Operating temperatur
-40 to 125 °C
Width
50 mm
Flammability class of the insulating material according to UL 94
V0
Height
35.5 mm
Number of poles
6
Depth
34 mm
Degree of contamination
3
Overvoltage category
III
