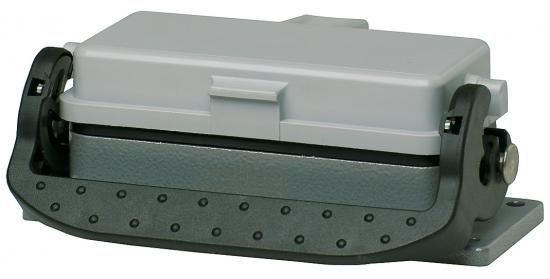

WALTHER surface-mounted housing, die-cast aluminum housing, height 28mm, with longitudinal locking bracket and hinged plastic cover, protection class: IP65, for the B24, BB46, D64, DD108 and MOB24 series, mounting cutout 112x35mm
| Property | Value |
| Width: | 140 mm |
| Height: | 29 mm |
| Housing design: | surface-mounted housing |
| Protection class (IP), mounted: | IP65 |
| Operating temperature: | -40 to 125 °C |
| Cable feed arrangement: | top |
| Locking type: | Longitudinal bracket |
| With hinged lid: | yes |
| Corrosion-resistant: | yes |
| With cable gland: | no |
| UV-resistant: | yes |
| Housing material: | Aluminum |
| Flammability class of the insulating material according to UL 94: | V0 |
| Housing coating: | powder-coated |
| Bracket position: | lower part |
| Depth: | 43 mm |
| Housing color: | grey |
| With nozzle: | no |
| With seal: | yes |
Features
HAB
714424 24-pin
Manufacturer
HAN
714424
GTIN
4015609030866
Housing coating
Powder coated
Operating temperatur
-40 to 125 °C
Width
140 mm
Flammability class of the insulating material according to UL 94
V0
Housing color
Gray
Height
29 mm
With hinged lid
Yes
Depth
43 mm
UV-resistant
Yes
Housing material
Aluminum
