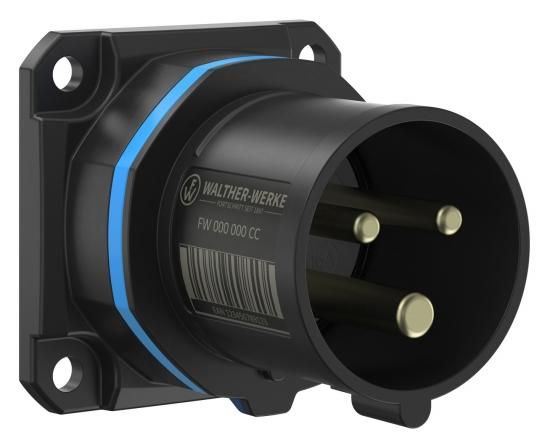

WALTHER CEE NEO panel mount plug straight, with cage clamp technology, with color ring coding blue, 16A 3P 6h 200-250V~, housing made of PA6 material, with highly heat-resistant contact carrier made of PA66 material, back of the hand safe according to BGV A3, flange size 60x60mm, mounting size 47x47mm
| Property | Value |
| IEC current: | 16 A |
| UL/CSA current (if UL version required): | 20 A |
| Number of poles: | 3 |
| Connection technology: | screwless terminal |
| Plug direction: | straight |
| Voltage according to EN 60309-2: | 230 V (50+60 Hz) blue |
| Time setting: | 6 h |
| Identification color: | blue |
| Protection class (IP): | IP54 |
| Material: | plastic |
| Phase inverter: | no |
| Design: | Appliance plug |
| Military version: | no |
| Rated voltage: | 250 V |
| Rated frequency: | 60 Hz |
Features
Rated frequency
60 Hz
Phase inverter
No
HAB
NEO 16A 3P 6h IP54 straight cage clamp
Minimal order
10 pcs
Manufacturer
HAN
FW612306CC
GTIN
4015609117055
Connection technology
Screwless terminal
Design
Attachment plug
Rated voltage
250V
IEC current
16A
Identification color
Blue
Military version
No
Number of poles
3
IP protection)
IP54
Voltage according to EN 60309-2
230 V (50+60 Hz) blue
Plug direction
Straight
UL/CSA current rating (if UL version required)
20A
Time position
6 hours
Material
Plastic
