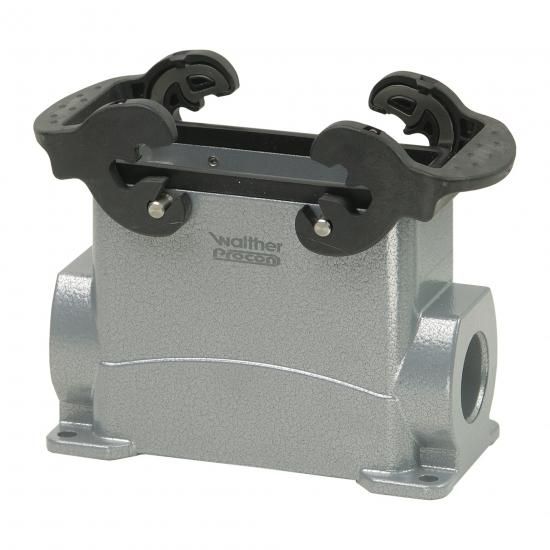

WALTHER base housing, die-cast aluminum housing, height 68mm, with plastic cross-locking brackets and an M25 connector, protection class: IP65, for the B16, BA6, BB32, D40, DD72 and MOB16 series
| Property | Value |
| Width: | 117 mm |
| Height: | 68 mm |
| Housing design: | Base housing |
| Protection class (IP), mounted: | IP65 |
| Operating temperature: | -40 to 125 °C |
| Cable entry arrangement: | side |
| Locking type: | Crossbar |
| With hinged lid: | no |
| EMC version: | no |
| Corrosion-resistant: | yes |
| With cable gland: | no |
| UV-resistant: | yes |
| Material of Housing: | Aluminium |
| Flammability class of the insulating material according to UL 94: | V0 |
| Housing coating: | powder-coated |
| Bracket position: | Lower part |
| Depth: | 57 mm |
| Housing color: | grey |
| Cable gland fastening type: | metric |
| With nozzle: | yes |
| With seal: | yes |
| Number of cable entries: | 1 |
Features
HAB
P711016MS 16-pin 1xM25 68mm high
Manufacturer
HAN
P711016MS
GTIN
4015609606023
Number of cable entries
1
Housing coating
Powder coated
Operating temperatur
-40 to 125 °C
Width
117 mm
Flammability class of the insulating material according to UL 94
V0
EMC version
No
Housing color
Gray
Height
68 mm
With hinged lid
No
Depth
57 mm
UV-resistant
Yes
Housing material
Aluminum
