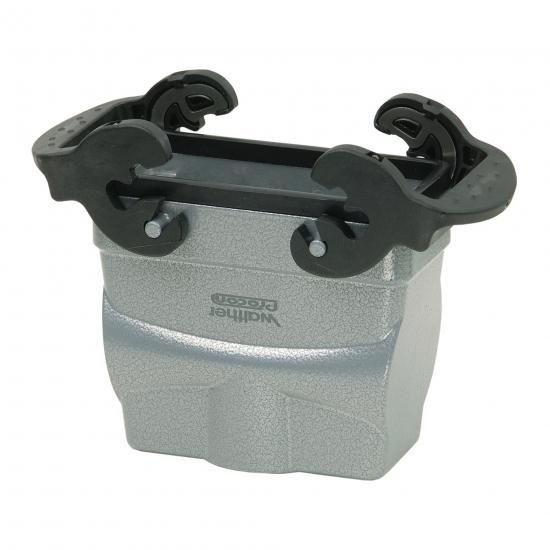

WALTHER coupling housing, aluminum die-cast housing, height 70.5mm, with a straight cable entry, with an M25 threaded hole, and cross-locking bracket made of plastic, protection class: IP65, for the series B16, BA6, BB32, D40, DD72 and MOB16
| Property | Value |
| Width: | 94 mm |
| Height: | 70.5 mm |
| Housing design: | Coupling housing |
| Protection class (IP), mounted: | IP65 |
| Operating temperature: | -40 to 125 °C |
| Cable feed arrangement: | top |
| Locking type: | Cross bar |
| With hinged lid: | no |
| EMC version: | no |
| Corrosion-resistant: | yes |
| With cable gland: | no |
| UV-resistant: | yes |
| Material of the housing: | aluminium |
| Flammability class of the insulating material according to UL 94: | V0 |
| Housing coating: | powder-coated |
| Bracket position: | upper part |
| Depth: | 43 mm |
| Housing color: | gray |
| Cable gland fastening type: | metric |
| With nozzle: | no |
| With seal: | yes |
| Number of cable entries: | 1 |
Features
HAB
P713616 B16 70.5mm high
Manufacturer
HAN
P713616
GTIN
4015609606405
Number of cable entries
1
Housing coating
Powder coated
Operating temperatur
-40 to 125 °C
Width
94 mm
Flammability class of the insulating material according to UL 94
V0
EMC version
No
Housing color
Gray
Height
70.5 mm
With hinged lid
No
Depth
43 mm
UV-resistant
Yes
Housing material
Aluminum
