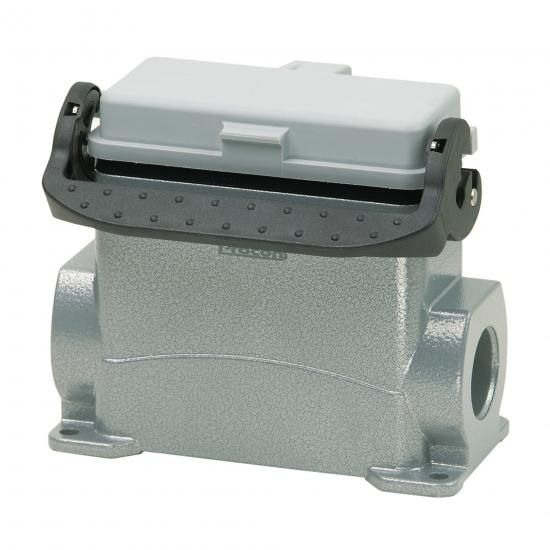

WALTHER base housing, die-cast aluminum housing, height 84mm, with longitudinal locking bracket made of plastic, with an M32 connector, and hinged lid made of plastic, protection class: IP65, for the series B16, BA6, BB32, D40, DD72 and MOB16
| Property | Value |
| Width: | 117 mm |
| Height: | 84 mm |
| Housing design: | Base housing |
| Protection class (IP), mounted: | IP65 |
| Operating temperature: | -40 to 125 °C |
| Cable feed arrangement: | side |
| Locking type: | Longitudinal bracket |
| With hinged lid: | yes |
| EMC version: | no |
| Corrosion-resistant: | yes |
| With cable gland: | no |
| UV-resistant: | yes |
| Material of the housing: | Aluminium |
| Flammability class of the insulation material according to UL 94: | V0 |
| Housing coating: | powder-coated |
| Bracket position: | Bottom part |
| Depth: | 57 mm |
| Housing colour: | grey |
| Cable gland fastening type: | metric |
| With Nozzle: | yes |
| With seal: | yes |
| Number of cable entries: | 1 |
Features
Waterproof socket
Yes
HAB
P757672MS 16-pin 1xM32 84mm hinged cover
Manufacturer
HAN
P757672MS
GTIN
4015609608164
Number of cable entries
1
Housing coating
Powder coated
Operating temperatur
-40 to 125 °C
Width
117 mm
Flammability class of the insulating material according to UL 94
V0
EMC version
No
Housing color
Gray
Height
84 mm
With hinged lid
Yes
Depth
57 mm
UV-resistant
Yes
Housing material
Aluminum
