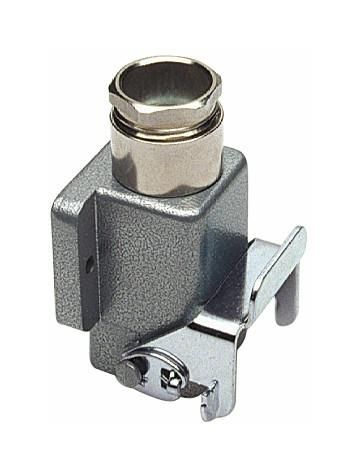

WALTHER base housing, zinc die-cast housing, height 25.5mm, with longitudinal locking bracket made of galvanized steel, and an M20 threaded hole, closed housing base, protection class: IP65, for the A3, A4, A5 and D8 series
| Property | Value |
| Width: | 24 mm |
| Height: | 25.5 mm |
| Housing design: | Base housing |
| Protection class (IP), mounted: | IP65 |
| Operating temperature: | -40 to 125 °C |
| Cable feed arrangement: | side |
| Locking type: | Longitudinal bracket |
| With hinged lid: | no |
| EMC version: | no |
| Corrosion-resistant: | yes |
| With cable gland: | no |
| UV-resistant: | yes |
| Material of Housing: | zinc |
| Flammability class of the insulating material according to UL 94: | V0 |
| Housing coating: | powder-coated |
| Bracket position: | lower part |
| Depth: | 40.5 mm |
| Housing colour: | other |
| Mounting type of cable gland: | metric |
| With nozzle: | no |
| With seal: | yes |
| Number of cable entries: | 1 |
Features
HAB
A3/A4 25.5mm high
Manufacturer
HAN
T701003
GTIN
4015609604111
Number of cable entries
1
Housing coating
Powder coated
Operating temperatur
-40 to 125 °C
Width
24 mm
Flammability class of the insulating material according to UL 94
V0
EMC version
No
Housing color
Other
Height
25.5 mm
With hinged lid
No
Depth
40.5 mm
UV-resistant
Yes
Housing material
Zinc
