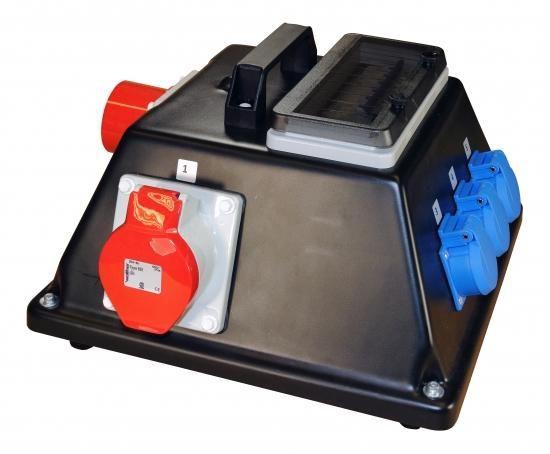

WALTHER socket distributor, connected load: 22kVA, according to IEC61439-4, housing made of hard polyethylene, highly heat and UV resistant, shock and impact resistant, color: -black-, with carrying handle, RCD circuit breaker and circuit breaker (MCB) underneath, operating flaps protectively insulated, protection class: IP 44, size approx.: 185 x 342 x 351mm / HBT, connection:, 1 CEE attachment plug 32A 5P 400V 6h, outlet / fuse:, 1 RCD circuit breaker 4P 40A/30mA -A-, 1 CEE attachment box 32A 5P 400V 6h, 1 CEE attachment box 16A 5P 400V 6h, with circuit breaker (MCB) 3P 16A -C-, 3 protective contact sockets 16A 2P 230V, each with 1 circuit breaker (MCB) 1P 16A -B-
| Property | Value |
| Rated voltage: | 400 V |
| Design: | End distribution cabinet |
| Rated current: | 32 A |
| Connection power: | 22 kVA |
| Number of CEE sockets 16 A / 400 V / 5-pin: | 1 |
| Number of CEE sockets 32 A / 400 V / 5-pin: | 1 |
| Number of SCHUKO sockets: | 3 |
| Main switch: | without |
| Height: | 185 mm |
| Width: | 335 mm |
| Depth: | 335 mm |
| Protection class (IP): | IP44 |
| Number of residual current circuit breakers 30 mA: | 1 |
| Number of circuit breakers: | 4 |
| Housing material: | Plastic |
Features
Number of SCHUKO sockets
3
Connected load
22 kVA
HAB
WEV2061 22kVA
Manufacturer
HAN
WEV2061
GTIN
4015609392933
Version
Final distribution cabinet
Rated voltage
400V
Rated current
32 A
Width
335 mm
Height
185 mm
IP protection)
IP44
Depth
335 mm
Housing material
Plastic
