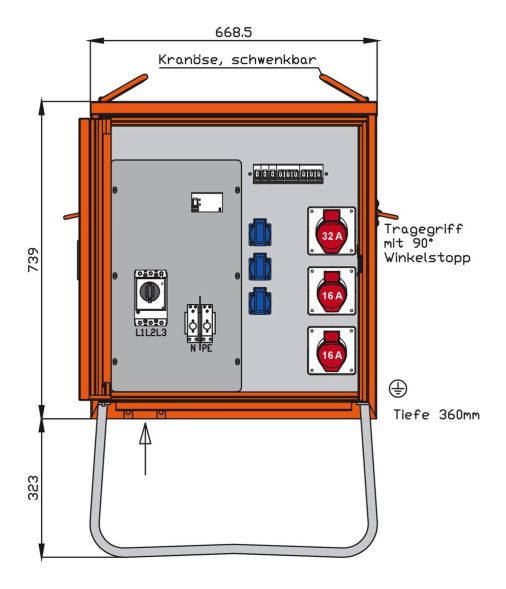

WALTHER distribution cabinet, connected load: 22kVA, according to IEC61439-4, housing (H06) made of electrolytically galvanized sheet steel, with heavy metal-free plastic coating, color: RAL 2004 -pure orange-, with single door, spring latch for padlock and recessed handle, with crane eyes and side handles, including hot-dip galvanized base frame with eyelets for ground nails, built-in components up to and including RCD circuit breaker in insulating housing, protection class: IP 44, size approx.: 739 x 669 x 360mm / HBT, + base frame height approx.: 323mm, connection:, 1 circuit breaker 3P 32A, with thermal-magnetic release, with box terminals 10-50 mm², output / protection:, 1 RCD circuit breaker 4P 40A/30mA -B-, 1 CEE mounting box 32A 5P 400V 6h, without backup fuse -directly from RCD-, 2 CEE mounting boxes 16A 5P 400V 6h, each with 1 circuit breaker (MCB) 3P 16A -C-, 3 earthed sockets 16A 2P 230V, each with 1 circuit breaker (MCB) 1P 16A -C-
| Property | Value |
| Rated voltage: | 230/400 V |
| Main switch rated current: | 32 A |
| Design: | Distribution cabinet |
| Rated current: | 32 A |
| Connected load: | 22 kVA |
| Number of CEE sockets 16 A / 400 V / 5-pin: | 2 |
| Number of CEE sockets 32 A / 400 V / 5-pin: | 1 |
| Number of SCHUKO sockets: | 3 |
| Main switch: | Circuit breaker |
| Height: | 1062 mm |
| Width: | 669 mm |
| Depth: | 360 mm |
| Protection class (IP): | IP44 |
| Number of residual current circuit breakers 30 mA: | 1 |
| Number of circuit breakers: | 5 |
| Number of poles main switch: | 3 |
| Material of the Housing: | Sheet steel |
