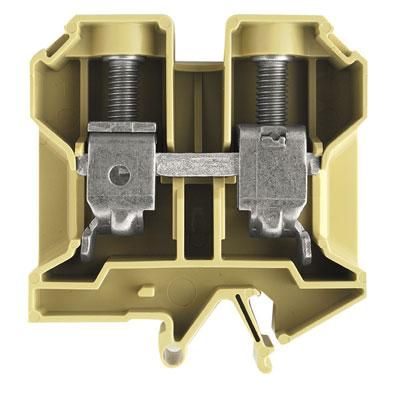

Terminal for connecting or joining wires, cores and cables with permanently secure contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
| Property | Value |
| Color: | multicolored |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 2.5 to 35 mm² |
| Connectable conductor cross-section, stranded: | 4 to 50 mm² |
| Rated voltage: | 800 V |
| Number of levels: | 1 |
| Number of terminal points per Floor: | 2 |
| Rated current In: | 125 A |
| Operating temperature: | -50 to 100 °C |
| Connectable conductor cross-section, single-wire: | 2.5 to 16 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 2.5 to 35 mm² |
| Design of electrical connection 1: | Screw connection |
| Mounting type: | Top hat/G rail TH35/G32 |
| Flammability class of the insulating material according to UL 94: | V2 |
| End plate required: | yes |
| Levels bridged internally: | no |
| Material of the insulating body: | Thermoplastic |
| Explosion-tested version 'Ex e': | yes |
Features
HAB
SAK35
Minimal order
20 pcs
Manufacturer
HAN
0303560000
GTIN
4008190169053
Connectable conductor cross-section solid
2.5 to 16 mm²
Connectable conductor cross-section stranded
4 to 50 mm²
Rated voltage
800V
Rated current In
125A
Operating temperatur
-50 to 100 °C
Flammability class of the insulating material according to UL 94
V2
Color
Mounting type
Top hat/G-rail TH35/G32
