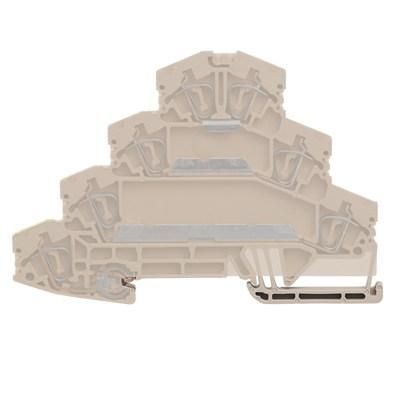

The motor connection terminal combines the performance characteristics of the larger grid with the width of the smaller grid. The result: maximizing the rated current while minimizing the size. This reduces the burden on purchasing, logistics and design-in.
| Property | Value |
| Color: | beige |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 0.5 to 4 mm² |
| Rated voltage: | 690 V |
| Number of levels: | 4 |
| Number of terminal points per level: | 2 |
| Rated current In: | 24 A |
| Operating temperature: | -50 to 120 °C |
| Connectable conductor cross-section, single-wire: | 0.5 to 4 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.5 to 2.5 mm² |
| Design of electrical connection 1: | Spring-loaded connection |
| Mounting type: | Top hat rail TH35 |
| Flammability class of the insulating material according to UL 94: | V0 |
| End plate required: | no |
| Internal bridged levels: | no |
| Material of the insulating body: | Thermoplastic |
| Explosion-tested version 'Ex e': | no |
Features
HAB
ZMAK2.5 690V
Minimal order
25 pcs
Manufacturer
HAN
1027550000
GTIN
4032248756773
Connectable conductor cross-section solid
0.5 to 4 mm²
Rated voltage
690V
Rated current In
24A
Operating temperatur
-50 to 120 °C
Flammability class of the insulating material according to UL 94
V0
Color
Mounting type
DIN rail TH35
