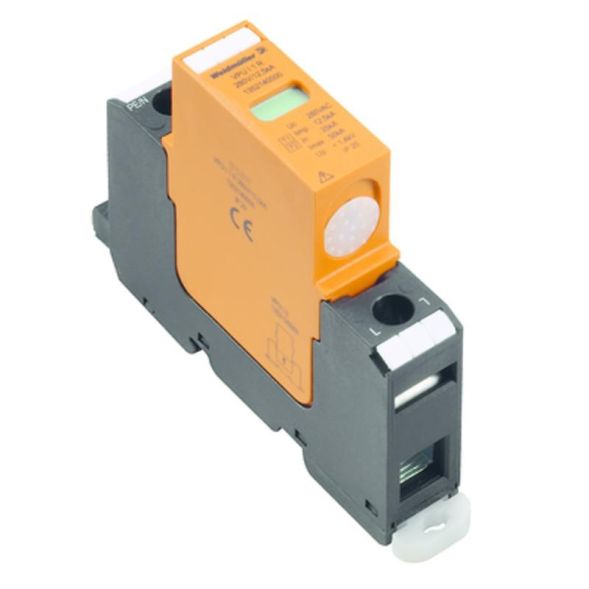

Device for surge protection in energy technology and power supply. The device should be installed close to the power supply of the system to be protected.
| Property | Value |
| Protection level: | 1.4 kV |
| Nominal discharge current (8/20): | 25 kA |
| Maximum continuous voltage AC: | 280 V |
| Nominal voltage AC: | 230 V |
| Protection level LN: | 1.4 kV |
| Mounting type: | DIN rail TH35 |
| Size: | 1 TE |
| Signaling on the device: | optical |
| With remote signaling contact: | yes |
| Test class type 2: | yes |
| Max. conductor cross-section flexible (fine-stranded): | 25 mm² |
| Max. Conductor cross-section rigid (single/multi-wire): | 50 mm² |
| Integrated backup fuse: | no |
| Protection class (IP): | IP20 |
| Network type DC: | no |
| Network type IT: | no |
| Network type TN: | yes |
| Network type TN-C: | no |
| Network type TN-CS: | no |
| Network type TN-S: | no |
| Network type TT: | no |
| Network type other: | yes |
| Number of conductors (without earth): | 1 |
| Short-circuit strength (Isccr): | 25 kA |
| Max. discharge current (8/20): | 25 kA |
Features
Max. conductor cross-section rigid (single/multi-wire)
50 mm²
Max. conductor cross-section flexible (fine-stranded)
25 mm²
Protection level
1.4 kV
With remote signaling contact
Yes
Number of conductors (excluding earth)
1
Network form TT
No
Network type TN-S
No
Max. discharge current (8/20)
25 kA
Test class type 2
Yes
Network form TN
Yes
Network type TN-C
No
Network type TN-C-S
No
Short circuit strength (Isccr)
25 kA
Protection level L-N
1.4 kV
Network type DC
No
Integrated backup fuse
No
Network type IT
No
HAB
VPU I 1 R 280V/12,5KA
Manufacturer
HAN
1352140000
GTIN
4050118158106
Size
1 TE
Highest continuous voltage AC
280V
Mounting type
DIN rail TH35
Nominal discharge current (8/20)
25kA
Nominal voltage AC
230V
IP protection)
IP20
Signaling on the device
Optical
