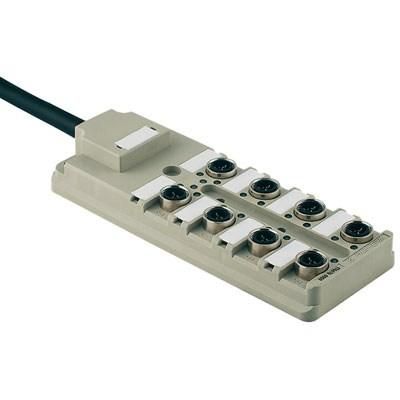

Distributor for bundling several input signals to a central cable outlet.
| Property | Value |
| Number of sensor/actuator slots: | 8 |
| Length of the pre-assembled cable: | 10 m |
| Number of poles of the sensor/actuator slots: | 3 |
| Protection class (IP): | IP67 |
| Height: | 25 mm |
| Width: | 60 mm |
| Material of the contact body: | Brass |
| Connection for NPN sensors: | no |
| With potential separation: | no |
| With LED display: | yes |
| Degree of pollution: | 2 |
| Material of the contact coating: | Gold |
| Cable length configurable: | no |
| Operating temperature: | -20 to 80 °C |
| Number of channels per slot: | 3 |
| Material of the insulating body: | PBT |
| Explosion protection category for dust: | without |
| Drag chain suitability of the fixed cable version: | yes |
| Design of the outlets for sensor/actuator cables: | other |
| Material of the housing: | plastic |
| Threaded bushings of the sensor/actuator slots: | M12 |
| Operating voltage: | 30 to 10 V |
| Outer cable diameter for cable gland: | 1.2 to 1.6 mm |
| Explosion protection category for gas: | without |
| Max. current load per I/O signal: | 4 A |
| Max. Current load capacity per connection socket: | 4 A |
| Housing color: | gray |
| Depth: | 152 mm |
Features
Operating voltage
30 to 10 V
HAB
SAI-8-F 3P IDC PUR 10M
Manufacturer
HAN
1766770000
GTIN
4032248107469
Operating temperatur
-20 to 80 °C
Width
60 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Housing color
Gray
Height
25 mm
With LED display
Yes
IP protection)
IP67
Depth
152 mm
Degree of contamination
2
Housing material
Plastic
