Connectors for free assembly for individual cable lengths. It is particularly suitable for applications with limited space.
| Property | Value |
| Rated current In: | 4 A |
| Material of the housing: | Brass |
| Design of the electrical connection: | Insulation displacement connection |
| Degree of pollution: | 3 |
| Type of locking: | other |
| Rated voltage: | 32 V |
| Material of the contact coating: | Tin |
| Housing design: | straight |
| Protection class (IP), mounted: | IP67 |
| Contact design: | Socket |
| Connectable conductor cross-section, stranded: | 0.14 to 0.34 mm² |
| Number of data contacts: | 4 |
| Number of power contacts: | 4 |
| Number of control contacts: | 4 |
| For cable outer diameter: | 3.2 to 5.4 mm |
| Housing coating: | other |
| Threaded ring material: | zinc die-cast |
| Shielded: | no |
Features
Shielded
No
HAB

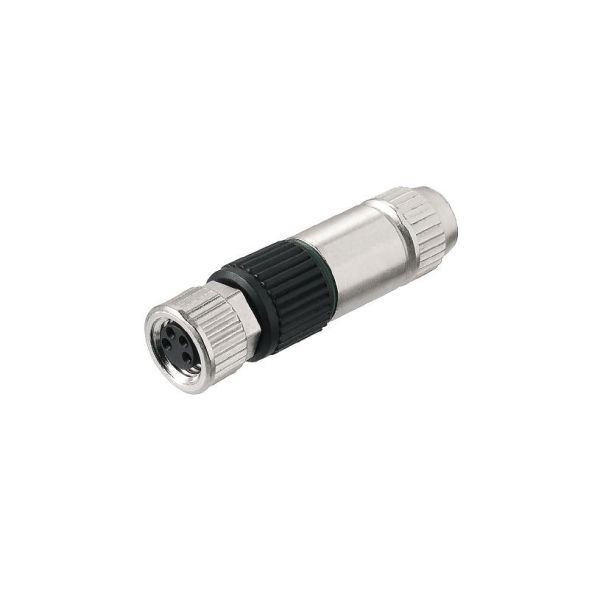

SAIB-4-IDC-M8 small
Manufacturer
HAN
1784050001
GTIN
4032248430000
Connectable conductor cross-section stranded
0.14 to 0.34 mm²
Design of the electrical connection
Insulation displacement connection
Rated voltage
32V
Rated current In
4 A
Housing coating
Other
Degree of contamination
3
Housing material
Brass
