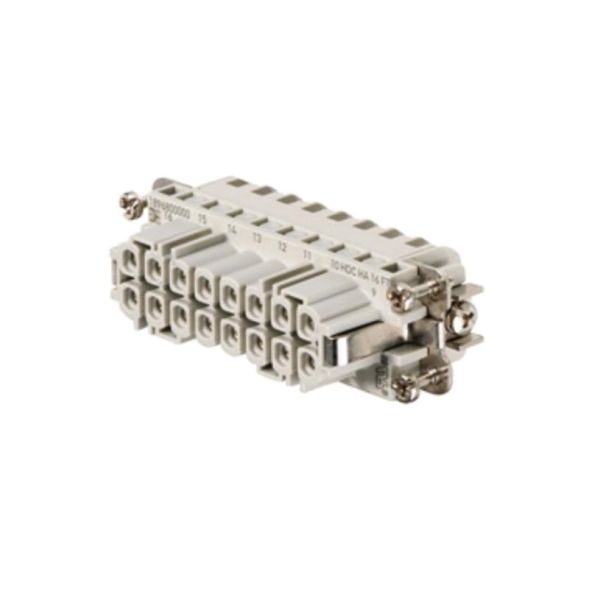

Insert for industrial connectors, consisting of contact element and insulating body.
| Property | Value |
| Number of poles: | 16 |
| Rated current In: | 16 A |
| Rated impulse voltage: | 4 kV |
| With protective conductor: | yes |
| Connectable conductor cross-section, stranded: | 0.25 to 2.5 mm² |
| Material of the connector insert: | Thermoplastic |
| Rated voltage: | 250 V |
| Contact design: | Socket |
| Pollution level: | 3 |
| Contact material: | other copper alloys |
| Connectable conductor cross-section, single-wire: | 0.5 to 2.5 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.5 to 2.5 mm² |
| Connectable conductor cross-section, fine-wire without Wire end ferrule: | 0.5 to 2.5 mm² |
| Contact insert without contacts: | no |
| Material of the contact coating: | silver |
| Design of the electrical connection: | spring-loaded connection |
| With wire protection: | no |
| Flammability class of the insulating material according to UL 94: | V0 |
| Material of the contact insert: | thermoplastic |
| Operating temperature: | -40 to 125 °C |
| Width: | 23 mm |
| Height: | 31.1 mm |
| Depth: | 73 mm |
Features
Rated surge voltage
4 kV
HAB
HDC HA 16 FT
Manufacturer
HAN
1896800000
GTIN
4032248592401
Connectable conductor cross-section solid
0.5 to 2.5 mm²
Connectable conductor cross-section stranded
0.25 to 2.5 mm²
Design of the electrical connection
Spring-loaded connection
Rated voltage
250V
Rated current In
16A
Operating temperatur
-40 to 125 °C
Width
23 mm
Flammability class of the insulating material according to UL 94
V0
Height
31.1 mm
Number of poles
16
Depth
73 mm
Degree of contamination
3
