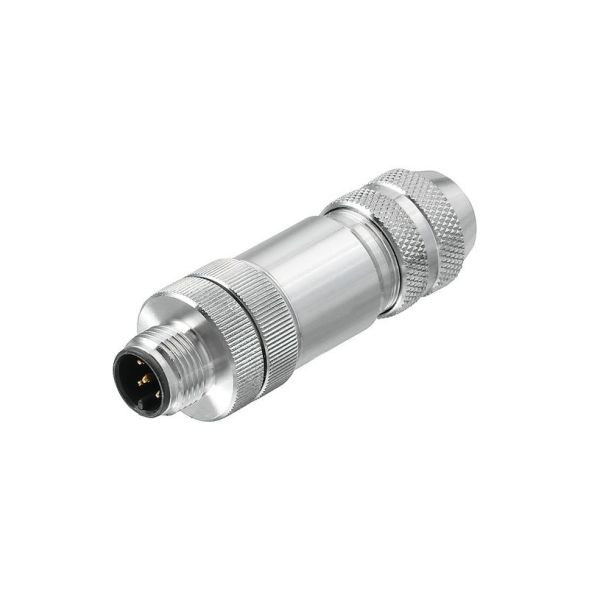

Connectors for free assembly for individual cable lengths. It is particularly suitable for applications with limited space.
| Property | Value |
| Rated current In: | 4 A |
| Material of the housing: | Stainless steel |
| Design of the electrical connection: | Spring-loaded connection |
| Degree of pollution: | 3 |
| Type of locking: | other |
| Rated voltage: | 60 V |
| Material of the Contact coating: | Gold |
| Housing design: | straight |
| Protection class (IP), mounted: | IP69K |
| Contact design: | Pin |
| Connectable conductor cross-section, stranded: | 0.25 to 0.5 mm² |
| Number of data contacts: | 5 |
| Number of power contacts: | 5 |
| Number of control contacts: | 5 |
| For cable outer diameter: | 6 to 8 mm |
| Housing coating: | other |
| Threaded ring material: | stainless steel |
| Shielded: | yes |
Features
Shielded
Yes
HAB
SAI 5/9-VA
Manufacturer
HAN
1920700000
GTIN
4032248561421
Connectable conductor cross-section stranded
0.25 to 0.5 mm²
Design of the electrical connection
Spring-loaded connection
Rated voltage
60V
Rated current In
4 A
Housing coating
Other
Degree of contamination
3
Housing material
Stainless steel
