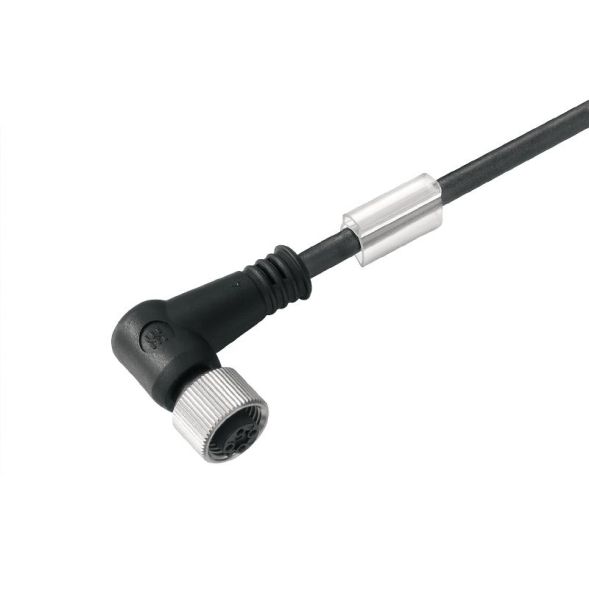

The sensor/actuator cable is used for wiring sensors and actuators and for transmitting data. The molded cable offers a factory-connected and tested connection of the connector to the cable.
| Property | Value |
| Rated current In: | 4 A |
| Color of the cable sheath: | black |
| With LED display: | no |
| Material of the cable sheath: | Polyvinyl chloride (PVC) |
| Number of poles: | 3 |
| Design of electrical connection, field side: | M12 |
| Type of plug contact, field side: | Female (socket) |
| Arrangement of the cable feed, field side: | angled |
| Design of electrical connection, housing side: | M12 |
| Type of plug contact, housing side: | Female (socket) |
| Arrangement of the cable feed, housing side: | angled |
| Cable length: | 5 m |
| Halogen-free: | yes |
| Shielded: | no |
| Radiation-crosslinked: | no |
| Permissible external cable temperature after installation without vibration: | -30 to 80 °C |
| Permissible external cable temperature during installation/handling: | -5 to 80 °C |
| Rated voltage: | 250 V |
| Protection class (IP): | IP67 |
Features
Shielded
No
HAB
SAIL-M12BW-3-5.0V
Manufacturer
HAN
1925630500
GTIN
4032248570171
Rated voltage
250V
Rated current In
4 A
Halogen free
Yes
Cable length
5 m
With LED display
No
Number of poles
3
IP protection)
IP67
