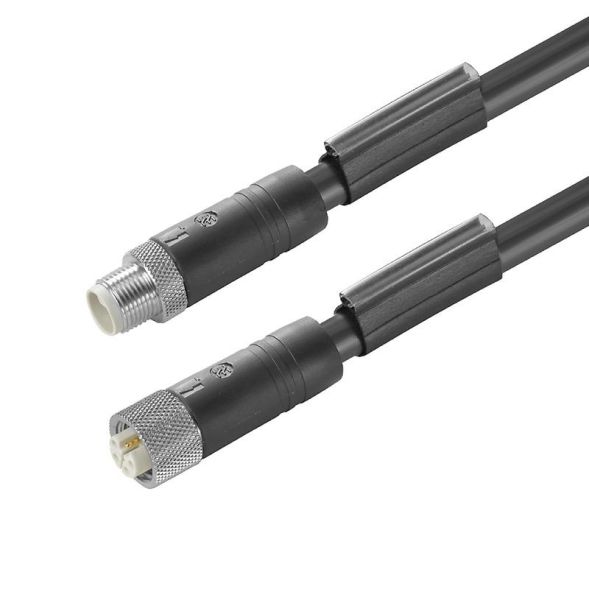

The sensor/actuator cable is used for wiring sensors and actuators and for transmitting data. The molded cable offers a factory-connected and tested connection of the connector to the cable.
| Property | Value |
| Rated current In: | 16 A |
| Color of the cable sheath: | gray |
| With LED display: | no |
| Material of the cable sheath: | Polyurethane (PUR) |
| Number of poles: | 5 |
| Design of electrical connection, field side: | M12 |
| Type of plug contact, field side: | Female (socket) |
| Arrangement of the cable feed, field side: | straight |
| Design of electrical connection, housing side: | M12 |
| Type of plug contact, housing side: | Male (plug) |
| Arrangement of the cable feed, housing side: | straight |
| Cable length: | 3 m |
| Halogen-free: | yes |
| Shielded: | no |
| Radiation-crosslinked: | no |
| Permissible external cable temperature after installation without vibration: | -40 to 80 °C |
| Permissible external cable temperature during installation/handling: | -30 to 80 °C |
| Rated voltage: | 50 V |
| Protection class (IP): | IP65 |
Features
Shielded
No
HAB
SAIL-M12GM12G-L-3.0P
Manufacturer
HAN
2455260300
GTIN
4050118470291
Rated voltage
50V
Rated current In
16A
Halogen free
Yes
Cable length
3m
With LED display
No
Number of poles
5
IP protection)
IP65
