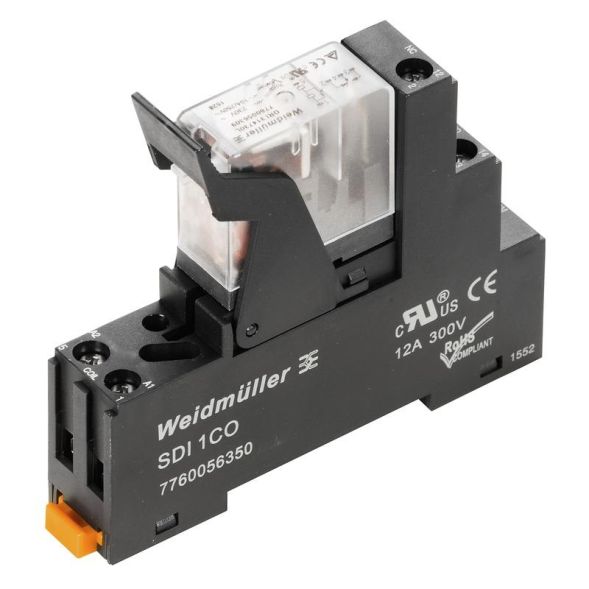

Relay coupler as assembled module consisting of plug-in relay and plug-in base. The control and load circuits are galvanically separated.
| Property | Value |
| Number of contacts as changeover contacts: | 1 |
| Rated control supply voltage Us at AC 50 Hz: | 92 to 126.5 V |
| Rated control supply voltage Us at AC 60 Hz: | 92 to 126.5 V |
| Type of voltage for actuation: | AC |
| Design of the electrical connection: | Screw connection |
| Drive, Polarity: | unpolarized |
| Height: | 80.2 mm |
| Width: | 15.8 mm |
| Depth: | 67.7 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | yes |
| Protection class (IP): | IP20 |
| With LED display: | yes |
Features
Complete device with base
Yes
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
HAB
DRIKIT 115VAC 1CO LD
Manufacturer
HAN
2476720000
GTIN
4050118496949
Number of contacts as changeover
1
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
92 to 126.5 V
Rated control supply voltage Us at AC 60 Hz
92 to 126.5 V
Width
15.8 mm
Height
80.2 mm
With LED display
Yes
With removable clamps
No
IP protection)
IP20
Voltage type for actuation
AC
Depth
67.7 mm
