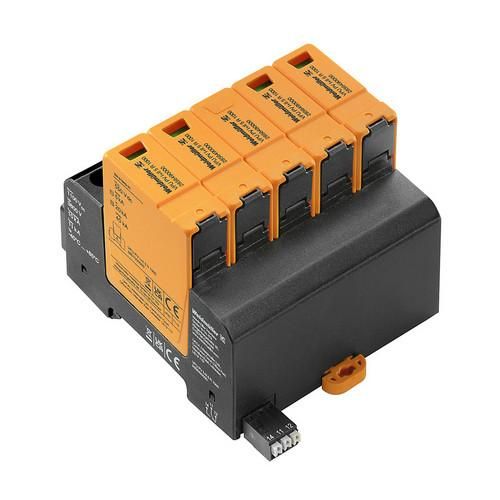

2856490000 VPU PV I+II 5 R 1000 1000V/ 40 kA with F surge protection Manufacturer article number: 2856490000, Manufacturer article name: VPU PV I+II 5 R 1000 1000V/ 40 kA with F
| Property | Value |
| Nominal voltage DC: | 1000 V |
| Mounting type: | DIN rail TH35 |
| Size: | 5 TE |
| Signaling on the device: | optical |
| With remote signaling contact: | yes |
| Test class type 2: | yes |
| Max. Flexible conductor cross-section (fine-wire): | 25 mm² |
| Max. Conductor cross-section rigid (single/multi-wire): | 35 mm² |
| Integrated backup fuse: | no |
| Protection class (IP): | IP20 |
| Network type DC: | yes |
| Number of conductors (without earth): | 3 |
Features
Max. conductor cross-section rigid (single/multi-wire)
35 mm²
Max. conductor cross-section flexible (fine-stranded)
25 mm²
With remote signaling contact
Yes
Number of conductors (excluding earth)
3
Test class type 2
Yes
Nominal voltage DC
1000 V
Network type DC
Yes
Integrated backup fuse
No
HAB
VPU PV I+II 5 R 1000 1000V/ 40 kA with F
Manufacturer
HAN
2856490000
GTIN
4064675536413
Size
5 HP
Mounting type
DIN rail TH35
IP protection)
IP20
Signaling on the device
Optical
