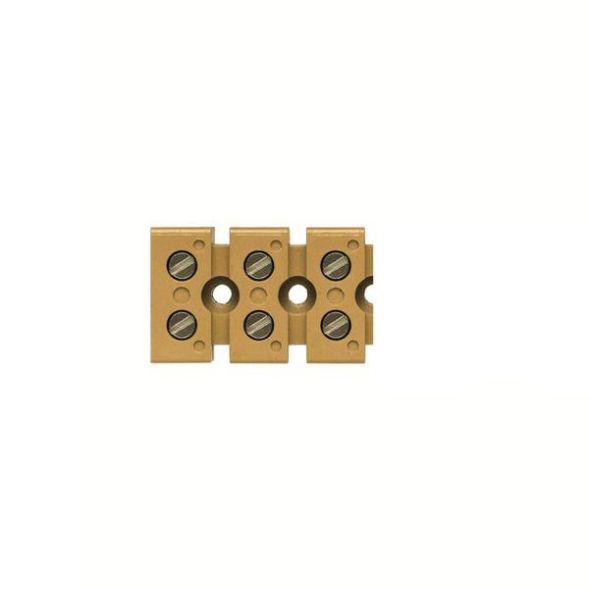

Terminal block for direct screwing onto the housing base.
| Property | Value |
| Number of poles: | 3 |
| Color: | yellow |
| Rated voltage: | 690 V |
| Material of the insulating body: | Duroplast |
| Rated current In: | 41 A |
| Operating temperature: | -60 to 130 °C |
| Connectable conductor cross-section single-wire: | 0.5 to 6 mm² |
| Connectable conductor cross-section, multi-wire: | 1.5 to 6 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.5 to 4 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 0.5 to 6 mm² |
| Design of electrical connection 1: | Screw connection |
| Flammability class of the insulating material according to UL 94: | 5V |
| End plate required: | no |
| Explosion-tested version 'Ex e': | no |
| Transparent: | no |
Features
HAB
MK 6/3/E
Manufacturer
HAN
7906230000
GTIN
4008190576431
Connectable conductor cross-section solid
0.5 to 6 mm²
Connectable conductor cross-section stranded
1.5 to 6 mm²
Rated voltage
690V
Rated current In
41 A
Operating temperatur
-60 to 130 °C
Flammability class of the insulating material according to UL 94
5V
Color
Number of poles
3
Transparent
No
