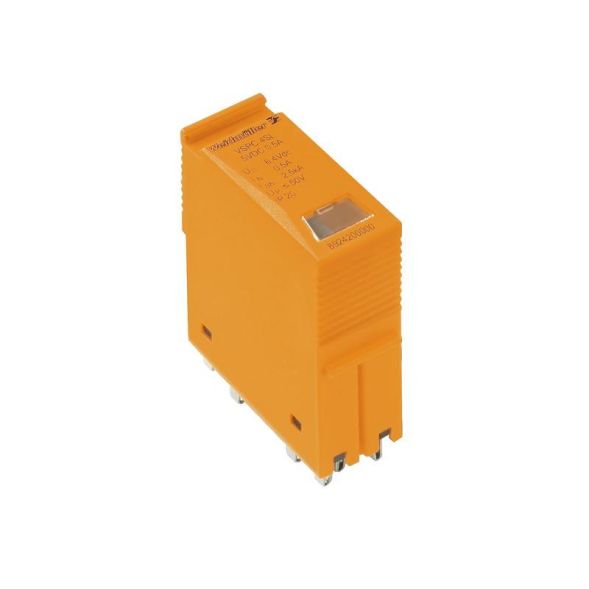

Device for overvoltage protection in information technology and measurement technology. The device should be installed close to the device to be protected.
| Property | Value |
| Signaling on the device: | optical |
| Nominal discharge current (8/20): | 2.5 kA |
| Nominal load current: | 450 A |
| Connection 1: | other |
| Maximum continuous voltage DC: | 28 V |
| Protection level wire/wire: | 45 V |
| Protection level wire/earth: | 450 V |
| Protection level signal ground/protective ground: | 650 V |
| Protection level wire/signal ground: | 450 V |
| With remote signaling contact: | no |
| Explosion-tested version: | yes |
| Arrester monitoring: | yes |
| Nominal voltage DC: | 24 V |
| Frequency: | 2.4 MHz |
Features
Explosion-tested version
Yes
With remote signaling contact
No
Connection 1
Other
Highest continuous voltage DC
28 V
Nominal load current
450 A
Nominal voltage DC
24 V
Protection level wire/wire
45 V
Protection level wire/earth
450 V
HAB
VSPC 1CL 24VDC R
Manufacturer
HAN
8951550000
GTIN
4032248742790
Frequency
2.4MHz
Nominal discharge current (8/20)
2.5kA
Signaling on the device
Optical
