Description

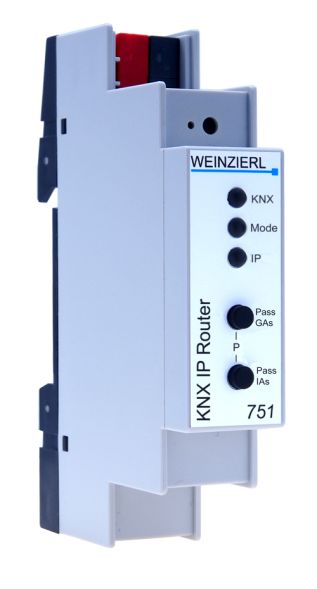

![CDATA[The new device has a compact design with a width of just 1 HP (18 mm) and is powered by the KNX bus. It enables telegrams to be forwarded between different lines via a LAN (IP) as a fast backbone and serves as an alternative to a KNX line coupler. The KNX IP Router 751 also functions as a programming interface for the ETS®. It has a comprehensive filter table and a large telegram buffer. Buttons and LEDs enable local diagnosis of the operating status and any communication errors. Technical data: Housing: plastic, series installation, installation width 1 HP. Control and display elements: 2 buttons and 3 LEDs (multicolor), KNX learning button with LED. Ethernet: 10BaseT, 5 KNXnet/IP tunnel connections. KNX: Medium IP/TP, filter table 8kByte (64k group addresses). Power supply: via KNX bus, approx. 15 mA. Connections: KNX connection terminal, LAN connection socket RJ-45. NOTE: Replaces KNX IP Interface 730.]]>
Features
Compatible with Google Assistant
N/A
Thread
No
Other bus systems
-
Operation via Bluetooth
No
EAN
4260262772435
Siemens LOGO!
No
Hager KNXeasy
No
KNX IP interface
Yes
KNX line coupler
No
KNX-Secure
No
Mbus
No
Modbus TCP
No
Samsung SmartThings
N/A
Wi-Fi
No
Zigbee
No
With Netatmo
No
Amazon Alexa
N/A
BAB-Tec
No
Gira One
No
JUNG HOME
No
KNX IP router
Yes
KNX-RF
No
KNX-TP
No
Matter
No
Modbus
No
Shelly
No
Theben LUXORliving
No
Wiser Home
No
Division units
-
Manufacturer type
KNX IP Router 751
Media coupler
No
System center
N/A
Transmission type
-
Apple HomeKit
N/A
Casambi
No
ENOcean
No
KNX USB interface
No
KNX-RF media coupler
No
Modbus RTU
No
DALI
No
Class
KNX IP router
Free@home
No
installation location
distribution cabinet
HAN
5243
Manufacturer
WEINZIERL
GTIN
4260262772435
