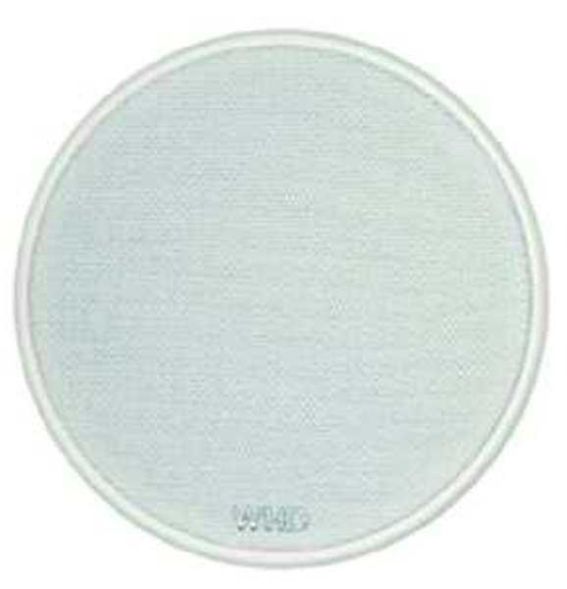

Standard ceiling loudspeaker made of plastic with high efficiency, ideal for the reproduction of speech and background music in higher rooms (3...4 m), e.g. in department stores, foyers, ... The UP 14 is equipped with a powerful 135 mm broadband chassis with additional tweeter cone. The mounting ring is attached using four sawtooth clamps and the front ring is screwed in using a bayonet lock. The EGT 14/2 pouring pot for concrete ceilings (with plaster compensation ring) is available as an accessory.
| Property | Value |
| Color: | white |
| Nominal load capacity: | 6.00 W |
| Music load capacity: | 8.00 W |
| Frequency: | 60.00 to 23000.00 Hz |
| Impedance: | 8 Ohm |
| Number of ways: | 1.00 |
| Width: | 196.00 mm |
| Height: | 196.00 mm |
| Depth: | 70.00 mm |
| Active system: | no |
| Bass reflex system: | no |
| Volume control: | no |
| Sound projector: | no |
| Horn speaker: | no |
| Floorstanding speakers: | no |
| Suitable for ceiling mounting: | yes |
| Suitable for recessed mounting: | yes |
| Portable: | no |
| Soundbar: | no |
| Bluetooth: | no |
| Ethernet: | no |
| Mobile High-Definition Link (MHL): | no |
| USB port: | no |
| Wi-Fi: | no |
| Diameter: | 196.00 mm |
