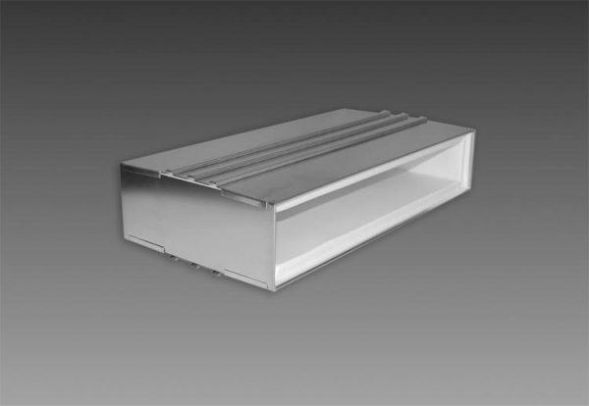

W120 cable box system Wichmann ® Z-19.15-202. Fire-resistant S120 sealing of cable ducts in walls. The cable box consists of a galvanized sheet steel housing, lined with fire protection agent that foams up in the event of a fire. The fire sealing is functionally separate from the cold smoke seal and works independently of the seal. The functionality of the cable box is not interrupted by subsequent installation work. The cable sealing is delivered as an industrially prefabricated and functional component ready for assembly and is mortared or plastered in on site. Incorrect and over-installation are almost impossible due to the design. The included EasyFoam foam plugs are used for cold smoke sealing. They have a much lower density and are therefore easier and quicker to process than, for example, fire protection plugs. The cables and the housing are sealed with a permanently elastic sealant (e.g. silicone or acrylic) or with EasyFoam fire protection assembly foam B1. Installation in light partition walls and in solid walls from 100 mm thick. The cable box can be 100 percent occupied with cables of all types (without limitation of the cable diameter) and with electrical installation conduits in accordance with DIN EN 61386 with and without cable assignment up to a diameter of 63 mm. In addition, the sealed cable box can be installed without assignment as a reserve bulkhead. When assigning, no distances are necessary between cables, cables and conduits and conduits among themselves, but cables with a diameter of 21 mm or more must be arranged next to one another. Within the conduits, there are no additional restrictions on the cable types and cable diameters. The cable box is also suitable for subsequent installation, as all cable boxes can be opened. In addition, the cable box can be re-assigned at any time while maintaining full functionality. The assembly is carried out in accordance with the enclosed assembly instructions or ABG Z-19.53-2517. No processor validation is necessary for installation.
| Property | Value |
| Accessories required: | no |
| Panel thickness/product length: | 350 mm |
