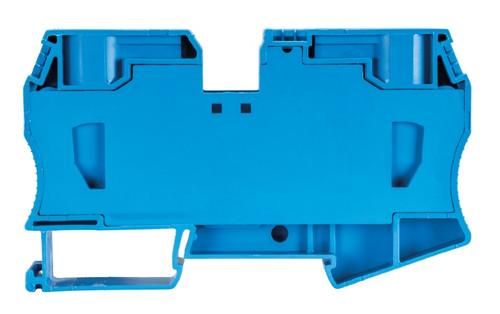

Feed-through terminal with tension spring connection for mounting on TS 35, nominal cross-section 35 mm, width 16 mm, color blue
| Property | Value |
| QS single-wire: | 2.50 to 10.00 mm² |
| QS fine-wire: | 2.50 to 35.00 mm² |
| QS multi-wire: | 16.00 to 35.00 mm² |
| Color: | blue |
| Rated voltage: | 800.00 V |
| Levels: | 1.00 |
| Terminal points per level: | 2.00 |
| Rated current In: | 125.00 A |
| Operating temperature: | -40.00 to 55.00 °C |
| Connection: | Spring-loaded connection |
| Design of electrical connection 2: | Spring-loaded connection |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL94: | V0 |
| End plate required: | no |
| Material of the insulating body: | Thermoplastic |
| Explosion-tested version Ex e: | yes |
| Depth: | 99.9 mm |
